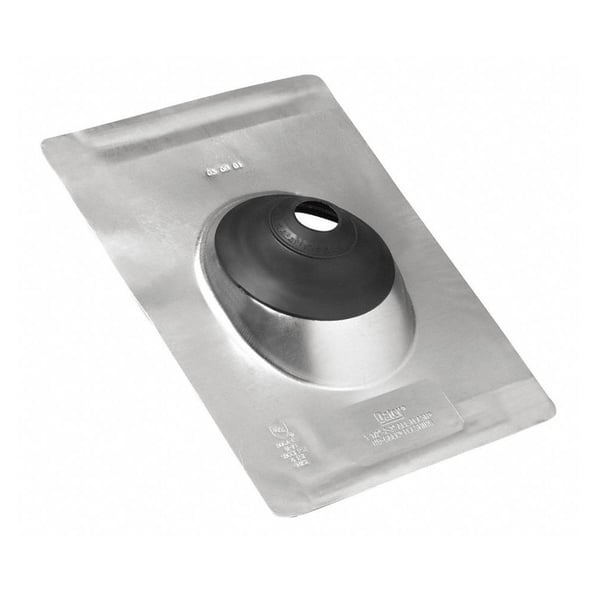

Oatey® All-Flash® No-Calk® 11871 Roof Flashing, Aluminum, 1-1/2 to 3 in Pipe, 11 in W x 14-1/2 in L Base

Selected Oatey® All-Flash® No-Calk® 11871 Roof Flashing, Aluminum, 1-1/2 to 3 in Pipe, 11 in W x 14-1/2 in L Base
Oatey® All-Flash® No-Calk® 11871 Roof Flashing, Aluminum, 1-1/2 to 3 in Pipe, 11 in W x 14-1/2 in L Base

Documents

Short Description

Oatey All-Flash No-Calk Roof Flashings can be used in commercial and residential applications where a watertight seal for roof penetrations around the plumbing vent pipe is required.

Features

  • Patented All-Flash® design allows use on multiple pipe sizes
  • Galvanized base
  • Rated 180 deg F continuous heat and Approved for type "B" installations
  • Metal base for pitch from 0 to 40 deg
  • Self-sealing collar slides over pipe and requires no caulking
  • Do not use petroleum based products or paint on flashing collar or plastic base not for hot-mopped or built-up roofs

Specification

Material
Aluminum
Pipe Size
1-1/2 to 3 in
Application
Commercial and Residential
Base Length
14-1/2 in
Base Width
11 in
Finish
Galvanized
Standard & Approvals
IAPMO Listed, ISO 9001, NES 653
