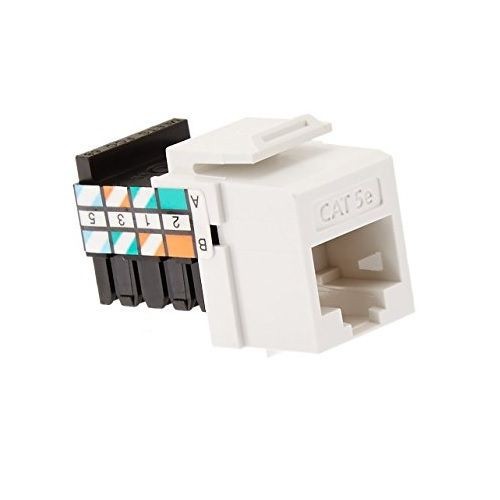

OCC® KMJA5E12 8-Position Modular Jack, Cat 5e Module, Keystone Mount, Thermoplastic, Bright White

Selected KMJA5E12OCC® KMJA5E12 8-Position Modular Jack, Cat 5e Module, Keystone Mount, Thermoplastic, Bright White
KMJA5E12OCC® KMJA5E12 8-Position Modular Jack, Cat 5e Module, Keystone Mount, Thermoplastic, Bright White

Short Description

The OCC Cat 5e Keystone Modular Jack is a great alternative for high-density applications. Featuring a low profile, snap-in design and support for universal T568A/B wiring, the KMJ Cat 5e jacks by OCC offer exceptional performance that exceeds industry standards. OCC's patented PC board technology provides component compliance to Cat5e specifications.

Features

  • Meets IEC 60603-7 requirements
  • 110-style IDC contacts meet TIA 568-C.2 requirements
  • Backward compatible, Cat 3 and Cat 5 compliant
  • Universal T568A/B wiring for easy installation
  • Fits all OCC keystone faceplates and surface mount boxes
  • Compliant with power over Ethernet (PoE+) requirements
  • 500 MOhm minimum insulation resistance, dielectric withstand 1000 VAC rms, AC 60 Hz or 1414 VDC P-P o DC, current rating is 1.5 A per conductor at 20 deg C ambient de-rated to 0.75 A at 60 deg C
  • 50 u-in hard gold over 100 u-in nickel or approved alternate plating process
  • = 750 110-style IDC terminal insertions/withdrawals
  • 22 to 26 AWG wire size

Specification

Material
Thermoplastic
Module Type
Cat 5e
Mounting Type
Keystone
Minimum Order Qty
1
Order Interval
1
Catalog ID
OCCKMJA5E12
Color
Bright White
Dimensions
0.9 in H x 0.67 in W x 1.17 in D
Series
KMJ
Type
8-Positions
Application
For 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet, Broadband Video, 270 Mbps Digital Video, 155/622 Mbps ATM, 100 Mbps TP-PMD, 4/16 Mbps Token Ring and Voice
Standard & Approvals
CSA Certified, RoHS Compliant, UL Listed
Includes
One-Piece Stuffer
