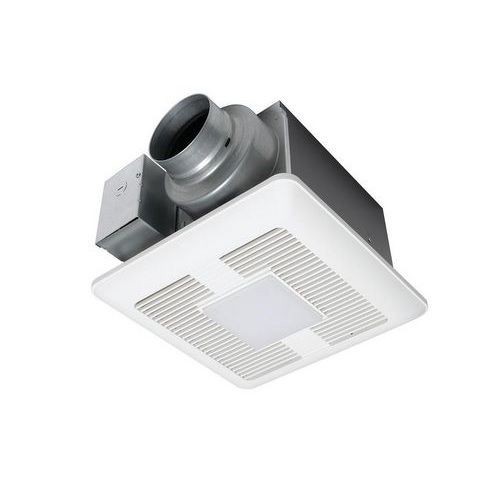

Panasonic WhisperCeiling® DC™ FV-0511VQL1 Round Duct Square Grille Ventilation Fan/Light With ECM Motor, L-Shaped Mounting Bracket, LED Lamp, 120 VAC, Zinc Aluminum Magnesium Housing
Panasonic WhisperCeiling® DC™ FV-0511VQL1 Round Duct Square Grille Ventilation Fan/Light With ECM Motor, L-Shaped Mounting Bracket, LED Lamp, 120 VAC, Zinc Aluminum Magnesium Housing
SKU: PANFV-0511VQL1
Manufacturer Part Number: FV-0511VQL1
UPC: 885170324954
Short Description
Features
- Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output
- Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80, 110 or 110, 130, 150 cfm models)
- Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling
- Lighted models incorporate one long life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination
- Elegant grille design compliments the aesthetics of any bathroom
- With LED chip panel lamp, built-in Pick-A-Flow™ speed selector switch
Specification
| Housing Material | Zinc Aluminum Magnesium |
|---|---|
| Lamp Type | LED |
| Lamp Wattage | 10 W |
| Light Color | Warm White |
| Mounting Type | Ceiling |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Air Flow Rate | 50/80/83/100/110 |
| Amperage Rating | 0.07/0.11/0.12/0.18/0.19/0.26 A |
| Average Life | 50000 |
| Catalog ID | PANFV-0511VQL1 |
| Color Rendering Index (CRI) | 90 |
| Color Temperature | 3000 |
| Dimensions | 10-1/4 in L x 10-1/4 in W x 7-3/8 in H |
| Type | Round Duct Square Grille |
| Voltage Rating | 120 VAC |
| Application | Bathroom, Laundry Room, Sun Room, Basement, Garage and Ventilation Applications |
| Standard & Approvals | cULus Listed, HVI Compliant, ENERGY STAR® Certified, Washington VIAQ Compliant, ASHRAE 62.2 Compliant, LEED Compliant, EarthCraft Compliant, PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level, or in a manner, that require Proposition 65 Consumer Product Exposure Warnings |
| Includes | 10 W Dimmable LED Chip Panel |
