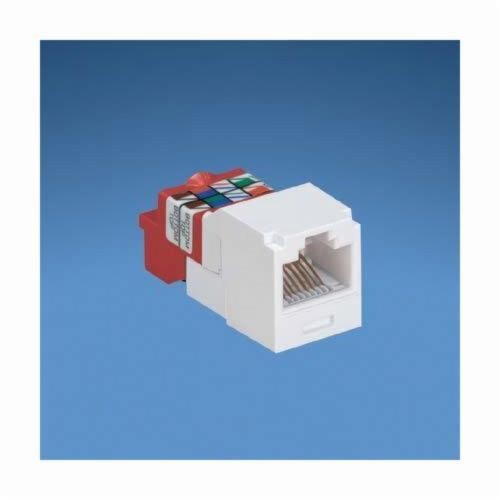

Panduit® PanNet® Mini-Jack™ TX5e™ CJ5E88TEI 1-Slot 8-Position 8-Wire Universal T-Style Unshielded Jack Module, Cat 5e/Mini-Com® Module, Surface Mount, 1 Port, ABS, Electric Ivory

Selected CJ5E88TWHPanduit® PanNet® Mini-Jack™ TX5e™ CJ5E88TEI 1-Slot 8-Position 8-Wire Universal T-Style Unshielded Jack Module, Cat 5e/Mini-Com® Module, Surface Mount, 1 Port, ABS, Electric Ivory
CJ5E88TWHPanduit® PanNet® Mini-Jack™ TX5e™ CJ5E88TEI 1-Slot 8-Position 8-Wire Universal T-Style Unshielded Jack Module, Cat 5e/Mini-Com® Module, Surface Mount, 1 Port, ABS, Electric Ivory

Documents

Short Description

Category 5e/Class D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded red to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.

Features

  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Conductor retention slots simplify jack module termination
  • UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes, 8-position, 8-wire
  • Controls cable bend radius for long term installed performance
  • Marked with quality control number for future traceability
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Can be clearly identified with optional labels and icons for port identification
  • CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability (Optional)
  • Provides a simple and secure method to control access to data ports while not in use (Optional)
  • T568A/T568B wiring scheme, jack module
  • Category 5e, Minicom module

Specification

Material
ABS
Mounting Type
Surface
Number of Ports
1
Minimum Order Qty
1
Order Interval
1
Color
Electric Ivory
Module Type
Cat 5e
Standard & Approvals
FCC, ANSI, IEC, PoE Compliant, RoHs Compliant, UL Listed
Application
Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, Token ring 4/16, Voice/Data Systems, Voice over Internet Protocol (VoIP), RoHS Compliant
Type
T Style Universal Unshielded
Series
Mini-Com®
Dimensions
0.62 in W x 1.43 in D x 0.71 in H
Catalog ID
PDTCJ5E88TEI
