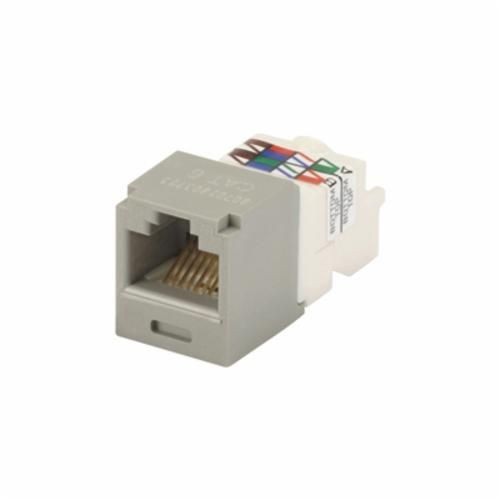

Panduit® PanNet® TX6™ Plus CJ688TPIG 1-Slot 8-Position 8-Wire Universal TP Style Unshielded Jack Module, Cat 6 RJ45/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, International Gray

Selected CJ688TPIGPanduit® PanNet® TX6™ Plus CJ688TPIG 1-Slot 8-Position 8-Wire Universal TP Style Unshielded Jack Module, Cat 6 RJ45/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, International Gray
CJ688TPIGPanduit® PanNet® TX6™ Plus CJ688TPIG 1-Slot 8-Position 8-Wire Universal TP Style Unshielded Jack Module, Cat 6 RJ45/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, International Gray

Documents

Short Description

Category 6/Class E, 8-position, UTP jack module shall terminate solid, 4-pair, 24 - 22 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.

Features

  • Bus (jack) model
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Conductor retention slots simplify jack module termination
  • UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
  • Controls cable bend radius for long term installed performance
  • Marked with quality control number for future traceability Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible
  • Can be clearly identified with optional labels and icons for port identification
  • CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability (Optional)
  • Provides a simple and secure method to control access to data ports while not in use (optional)
  • 8-position, 8-wire
  • -14 to 14 deg F operating temperature, -4 to 158 deg F storage temperature
  • Category 6, Minicom module
  • ABS Module Housing, Polycarbonate Wire Cap

Specification

Material
ABS
Mounting Type
Surface
Standard & Approvals
FCC, ANSI, PoE Compliant, IEC Compliant, RoHs Compliant, UL Listed
Application
Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video, Voice Over Internet Protocol (VoIP)
Type
RJ45 Universal Unshielded
Series
Mini-Com®
Number of Ports
1
Module Type
Cat 6
Color
International Gray
Dimensions
0.63 in W x 1.43 in D x 0.71 in H
