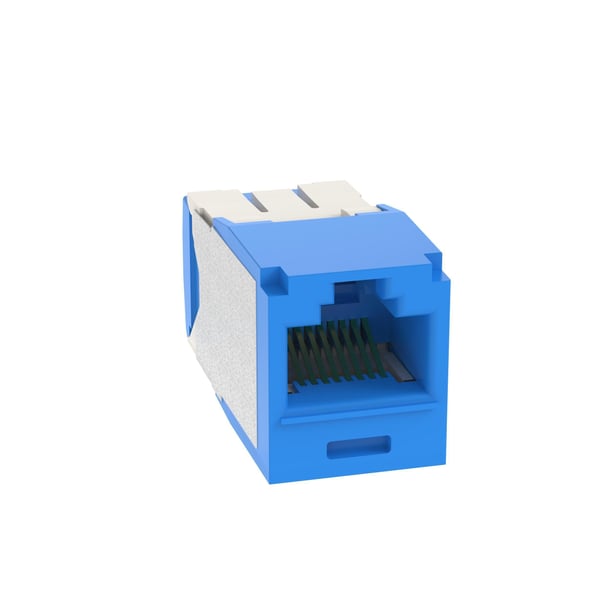

Panduit® PanNet® TX6A™ CJ6X88TGBU-C 8-Position 8-Wire Universal Unshielded Shuttered Jack Module, Cat 6A RJ45/Mini-Com® Module, 1 Port, ABS/Polycarbonate, Blue
Panduit® PanNet® TX6A™ CJ6X88TGBU-C 8-Position 8-Wire Universal Unshielded Shuttered Jack Module, Cat 6A RJ45/Mini-Com® Module, 1 Port, ABS/Polycarbonate, Blue
SKU: PDTCJ6X88TGBU-C
Manufacturer Part Number: CJ6X88TGBU-C
EAN: 0074983204595
UPC: 074983204595
Documents
Features
- 100% performance tested Confidence that each jack module will deliver the critical electrical performance requirements
- Individually serialized marked with quality control number for future traceability
- Each module is 100% factory tested to exceed industry standard performance requirements
- TG style termination eliminates the need for a termination tool
- Each jack is individually serialized for traceability and is compatible with Mini-Com® shielded modular patch panel and faceplate
- The Mini-Com® Cat 6A UTP RJ45 TG jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable
Specification
| Material | ABS/Polycarbonate |
|---|---|
| Dimensions | 0.63 in W x 1.5 in D x 0.71 in H |
| Type | 8-Position 8-Wire Universal Unshielded Shuttered |
| Color | Blue |
| Module Type | Cat 6A RJ45/Mini-Com® |
| Number of Ports | 1 |
