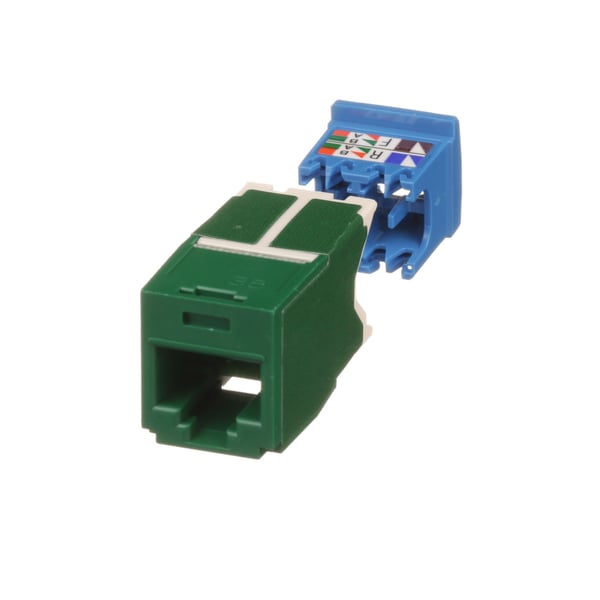

Panduit® 10Gig™ PanNet® TX6A™ CJ6X88TGGR 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 6A RJ45/Mini-Com® Module, 1 Port, ABS/Polycarbonate, Green
Panduit® 10Gig™ PanNet® TX6A™ CJ6X88TGGR 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 6A RJ45/Mini-Com® Module, 1 Port, ABS/Polycarbonate, Green
SKU: PDTCJ6X88TGGR
Manufacturer Part Number: CJ6X88TGGR
EAN: 0074983636211
UPC: 074983636211
Documents
Features
- Compatible with components of the TX6A™ and TX6A-SD™ 10 Gig UTP copper cabling system with MaTriX technology (100 and 70 m solutions) for increased design flexibility
- Innovative MaTriX split foil technology provides superior alien crosstalk performance enabling high density applications (48-ports, 1RU)
- Confidence that each jack module will deliver the critical electrical performance requirements
- Marked with quality control number for future traceability
- Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
- Each module is 100% factory tested to exceed industry standard performance requirements
- TG style termination eliminates the need for a termination tool
- Each jack is individually serialized for traceability and is compatible with Mini-Com® shielded modular patch panel and faceplate
- The Mini-Com® Cat 6A UTP RJ45 TG jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable
Specification
| Material | ABS/Polycarbonate |
|---|---|
| Module Type | Cat 6A RJ45/Mini-Com® |
| Number of Ports | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.panduit.com/content/dam/panduit/en/products/media/3/53/553/0553/111140553.mp4 |
| Color | Green |
| Application | For unshielded applications |
| Standard & Approvals | ANSI/TIA-568-C.2/Class EA, ANSI/TIA-568-C.2/1096-A, ARRA Compliant, Buy American Act Compliant, FCC Certified, IEC 60603-7/60512-99-001, RoHS Compliant, T568A/T568B, UL File No. 1863/2043 |
| Dimensions | 0.63 in W x 1.5 in D x 0.71 in H |
| Catalog ID | PDTCJ6X88TGGR |
| Includes | Termination Tool |
| EANUCC13 | 0074983636211 |
| Type | 8-Position 8-Wire Universal TG Style Unshielded |
