Panduit® Mini-Com® CMDSLCEI Fiber Optic Adapter Module, LC Duplex Connector, 1 Ports, Panel Mount, OM3/OM4 Multi-Mode Fiber

Selected CMDSLCIWPanduit® Mini-Com® CMDSLCIW Duplex Fiber Optic Adapter Module With Phosphor Bronze Split Sleeve, LC Connector, 1 Ports, Panel Mount, Multi-Mode Fiber

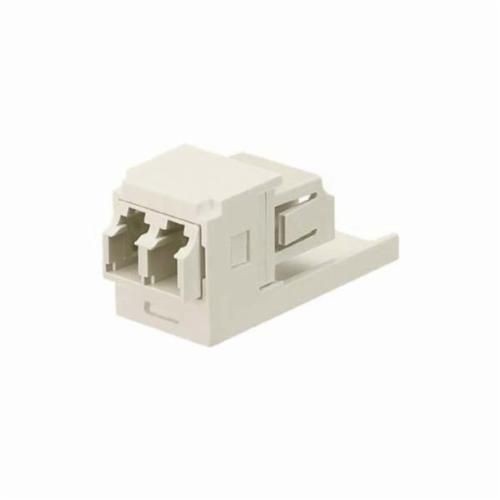

CMDSLCIWPanduit® Mini-Com® CMDSLCIW Duplex Fiber Optic Adapter Module With Phosphor Bronze Split Sleeve, LC Connector, 1 Ports, Panel Mount, Multi-Mode Fiber

Documents

Short Description

LC small form factor (SFF) fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-10 compatible. Each LC simplex adapter shall connect one LC connector pair in one module space. Each LC duplex adapter shall connect two LC connector pairs in one module space. LC adapters and adapter modules shall include phosphor bronze split sleeves for multimode applications or zirconia ceramic split sleeves for single mode applications.

Features

  • Module supplied with one LC Sr./Sr. SFF duplex multimode fiber optic adapter (EI) with phosphor bronze split sleeves
  • One module space
  • Small form factor (SFF) duplex adapter design fits into single module space
  • Provide a FOCIS-10 senior adapter interface at each end
  • Accept FOCIS-10 compatible senior LC connectors
  • Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements
  • Every adapter is laser marked with Q.C. number to assure 100% traceability
  • OM1 62.5/125um fiber
  • Electric ivory module and adapter color
  • 0.1 dB average insertion loss, >20 dB return loss
  • 0.72 in H x 0.61 in W x 1.37 in D dimension

Specification

Material
Plastic
Mounting Type
Panel
Number of Ports
1
Suitable For Use With
Mini-Com® Modules, Patch Panels, Faceplates, Surface Mount Boxes
Type
Duplex
Standard & Approvals
RoHS Compliant, TIA/EIA-568-B.3 Standard
Color
Electric Ivory
Connector Type
LC
Fiber Type
Multi Mode
