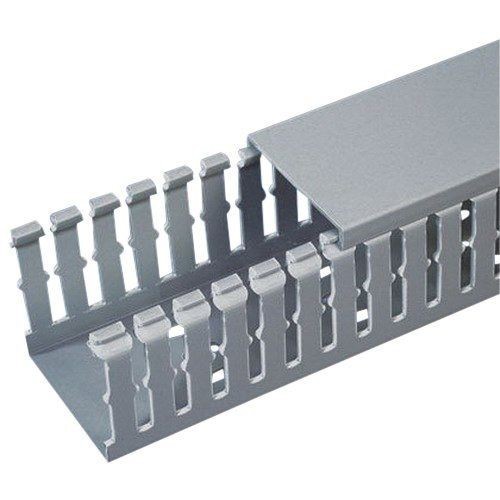

Panduit® Panduct® F1.5X3LG6 Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 1-3/4 in W x 3 in D, PVC

Pick Up Only
Selected Panduit® Panduct® F1.5X3LG6 Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 1-3/4 in W x 3 in D, PVC
Panduit® Panduct® F1.5X3LG6 Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 1-3/4 in W x 3 in D, PVC

Documents

Short Description

The temporary protection film shall protect duct covers from damage during the installation process. The film shall be see-through, clear and peel away easily from the cover without leaving a sticky residue. The film shall provide a place for writing notes without allowing the ink to bleed through.

Features

  • Protects cover surface from scratches and grime during storage handling and installation, reduces scrap and labor costs
  • Ensures film will remain adhered during cutting and is easily removed without leaving a sticky residue, achieve faster installations for a clean, finished appearance
  • Provides an area for notes from installer to field electricians, improves productivity and reduces installation time
  • Easy identification of product color when film is attached, ideal for quick and accurate product selection
  • Narrow slot/finger design provides more slots to fit the spacing of high density terminal blocks and other hardware
  • 122 deg F UL recognized continuous use temperature
  • UL 94 flammability rating of V-0
  • Provided with mounting holes
  • 4500 psi tensile strength
  • 600% elongation
  • Film remains adhered during cutting and is easily removed without leaving a sticky residue for faster and cleaner installations
  • Features a convenient writing surface for improved productivity
  • Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material
  • External dimension: 1-3/4 in W x 3.12 in D
  • Standard Mounting Holes
  • Lead-Free PVC

Specification

Length
6 ft
Material
PVC
Mounting Type
Surface
Minimum Order Qty
6
Order Interval
6
Video
https://www.panduit.com/content/dam/panduit/en/products/media/5/55/055/2055/110122055.mp4
Catalog ID
PDTF1.5X3LG6
Color
Light Gray
Depth
3 in
Slot Size
0.2 in
Slot Type
Narrow Finger
Thickness
2 mil
Type
Type F
Width
1-3/4 in
Application
For reducing scrap and labor costs by protecting the surface during storage, handling, and installation
Standard & Approvals
CSA Certified, CE Certified, NFPA 79-2007, RoHS Compliant, ASTMD882, ASTMD882
