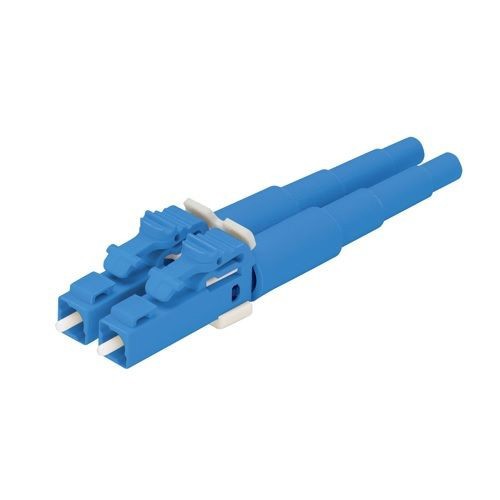

Panduit® OptiCam® FLCDSCBUY Fiber Optic Connector, LC Duplex Connector, 9/125 um OS1/OS2 Singlemode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule, Cam Termination Mount

Selected Panduit® OptiCam® FLCDSCBUY Fiber Optic Connector, LC Duplex Connector, 9/125 um OS1/OS2 Singlemode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule, Cam Termination Mount
Panduit® OptiCam® FLCDSCBUY Fiber Optic Connector, LC Duplex Connector, 9/125 um OS1/OS2 Singlemode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule, Cam Termination Mount

Documents

Short Description

LC small form factor (SFF) pre-polished connectors with rear pivot latch shall be TIA/EIA-604 FOCIS-10 compatible and contain a factory-terminated fiber, eliminating field polishing and adhesive. LC pre-polished connectors shall have an average insertion loss of 0.3dB per mated pair for multimode and single mode fiber. LC pre-polished connectors shall captivate fiber and buffer in one action allowing for up to two re-terminations with no degradation in performance.

Features

  • Pre-polished cam termination
  • Reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
  • Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
  • Reduces the termination time compared to conventional termination methods
  • Allows up to two re-terminations to achieve optimum termination result
  • Reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
  • Translucent housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields, and lower installed costs
  • Non-optical disconnect maintains data transmission under tensile loads for jacketed cable for network reliability
  • Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
  • Zirconia ceramic ferrules provide the highest durability for repeated matings
  • Universal termination tool secures both fiber and buffer in one action for all OptiCam® connectors with connector specific cradles
  • Ensures fast, consistent, and optimal terminations
  • Integrated visual termination indicator (VTI) provide the highest durability for repeated matings
  • Blue boot
  • UPC ferrule finish
  • 9/125 um OS1/OS2 fiber
  • 0.3 dB average insertion loss, >50 dB return loss

Specification

Minimum Order Qty
1
Order Interval
1
Color
Blue
Ferrule Type
Zirconia Ceramic
Fiber Type
OS2 Single Mode
Type
Duplex
Connector Type
LC/OptiCam
Catalog ID
PDTFLCDSCBUY
Cable Construction
900 um Buffered Fiber
Video
https://www.panduit.com/content/dam/panduit/en/products/media/4/24/524/1524/1524.wmv
Standard & Approvals
TIA/EIA-604 FOCIS-10 Compliant Exceeds TIA/EIA-568-B.3 Requirements
Application
For high-speed data transmission, fiber optic backbone and horizontal applications
