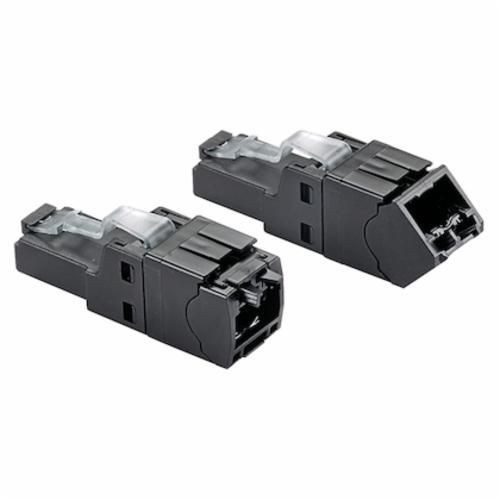

Panduit® TX6A™ FP6X88MTG 8-Wire Straight Unshielded Modular Plug, Cat 6A RJ45/8 Position Plug Module, Polycarbonate, Black

Selected Panduit® TX6A™ FP6X88MTG 8-Wire Straight Unshielded Modular Plug, Cat 6A RJ45/8 Position Plug Module, Polycarbonate, Black
Panduit® TX6A™ FP6X88MTG 8-Wire Straight Unshielded Modular Plug, Cat 6A RJ45/8 Position Plug Module, Polycarbonate, Black

Documents

Short Description

The TX6A™ Category 6A UTP Field Term RJ45 Plug is a simple-to-attach plug for field termination of 4-pair unshielded twisted pair cable. Providing Category 6A performance the TX6A™ plug is also compatible with Category 6 and 5e systems. The two-piece straight and up/down angled TX6A™ plug terminates 4-pair, 22 to 26 AWG, 100 Ohm unshielded twisted pair cable and uses proven TG-style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.

Features

  • Proven electrical performance and quick installation speed from the same forward motion termination technology used in Panduit® mini com TG modular jacks
  • Simple two piece assembly
  • Slim plug profile
  • TG style termination technology
  • Retermination
  • Compact termination tools

Specification

Material
Polycarbonate
Type
Straight
Application
Wireless Access Points (WAPs), Power Over Ethernet (PoE) LED lighting, IP Security Cameras and Motion Sensors, Building Access Control Points, Network-Attached Audio/Video Equipment and Other PoE or HDBASE-T Powered Network Devices
Standard & Approvals
RoHS Compliant
Dimensions
0.53 in W
Color
Black
