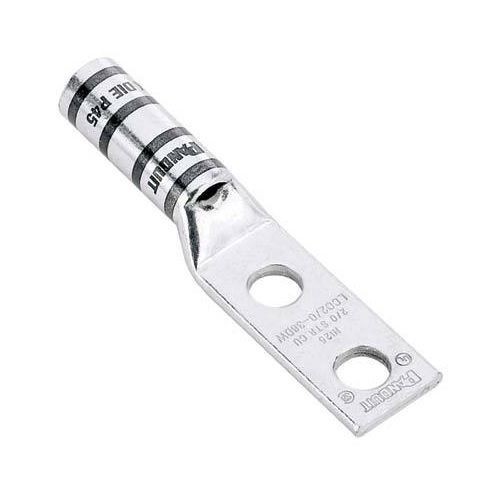

Panduit® Pan-Lug™ LCC6-14AW-L LCC-W 2-Hole Compression Connector Lug, 6 AWG Flexible/Stranded Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated Copper

Selected Panduit® Pan-Lug™ LCC6-14AW-L LCC-W 2-Hole Compression Connector Lug, 6 AWG Flexible/Stranded Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated Copper
Panduit® Pan-Lug™ LCC6-14AW-L LCC-W 2-Hole Compression Connector Lug, 6 AWG Flexible/Stranded Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated Copper

Documents

Short Description

Panduit® Pan-Lug ™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.

Features

  • Color-coded bands for proper die selection and crimp placement
  • Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection
  • Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion
  • Inspection window to assure complete conductor insertion
  • For use with stranded copper conductors
  • 5/8 in Stud Hole Spacing
  • Electro Tin Plated Copper

Specification

Material
Copper
Mounting Hole Size
1-1/8 in
Overall Length
2.49 in
Minimum Order Qty
1
Order Interval
1
Color Code
Blue
Conductor Size
6 AWG
Conductor Type
Copper
Die Code
P24
Stud Size
1/4 in
Temperature Rating
90 deg C
Tongue Style
Straight
Voltage Rating
35 kV
Type
2-Hole
Tongue Size
0.48 in W x 0.08 in THK
Series
LCC
Catalog ID
PDTLCC6-14AW-L
Barrel Style
Long
Barrel Size
1.07 in L
Video
https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
Standard & Approvals
UL File No. E52164, CSA C22.2 No. 65-03, American Bureau Approved, NEBS Level 3, RoHS Compliant
Application
Used to provide permanent terminations for a variety of power and grounding applications
