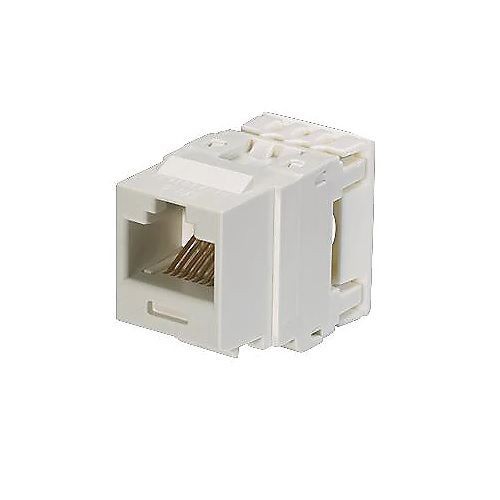

Panduit® NetKey® NK688MWH-Q 8-Position 8-Wire Punchdown Unshielded Jack Module, Cat 6 RJ45/Keystone Module, Surface Mount, 1 Port, ABS/Polycarbonate, White
Panduit® NetKey® NK688MWH-Q 8-Position 8-Wire Punchdown Unshielded Jack Module, Cat 6 RJ45/Keystone Module, Surface Mount, 1 Port, ABS/Polycarbonate, White
SKU: PDTNK688MWH-Q
Manufacturer Part Number: NK688MWH-Q
UPC: 074983997114
Features
- Confidence that each jack module delivers specified performance
- Utilizes industry standard termination style and includes wire retention cap
- Universal keystone jack modules snap in and out of all NetKey® faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
- Marked with quality control number for future traceability
- Eliminating the time to open each individual package and reducing on site waste, ideal for high volume installations
Specification
| Material | ABS/Polycarbonate |
|---|---|
| Mounting Type | Surface |
| Specifications | 1-Port |
| Suitable For Use With | Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Voice Over Internet Protocol (VoIP), Token Ring 4/16 |
| Type | 8-Position 8-Wire Cat 6 Punchdown Unshielded |
| Application | Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, token ring 4/16 and voice over internet protocol (VoIP) |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, cULus Listed, UL 1863, CAN/CSA C22.2, IEC 60603-7,60512-99-001, FCC Certified, ANSI/TIA-568-C.2 |
| Dimensions | 0.65 in W x 1.16 in D x 0.9 in H |
| Color | White |
