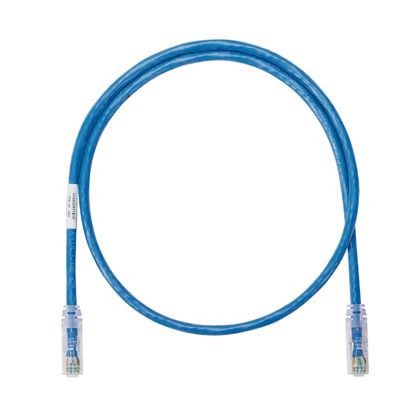

Panduit® NetKey® NK6APC7BU Class EA Patch Cord, Cat 6A, 26 AWG F/UTP Copper Conductor, Modular Plug Connector, 7 ft L Cord

Selected NK6APC2BUPanduit® NetKey® NK6APC5BU F/UTP Patch Cord, Cat 6A, 26 AWG Copper Conductor, Modular Plug Connector, 5 ft L Cord
NK6APC2BUPanduit® NetKey® NK6APC5BU F/UTP Patch Cord, Cat 6A, 26 AWG Copper Conductor, Modular Plug Connector, 5 ft L Cord

Documents

Short Description

The NetKey® copper and fiber cabling system provides a complete, standards compliant cabling infrastructure solution for voice, data and video applications. NetKey® modules feature the universal ''keystone'' design and are compatible with a wide assortment of modular patch panels, faceplates and surface mount boxes. When teamed with complementary Panduit® products. The NetKey® solutions cover all your needs from the telecommunication room to the work area with the proven innovation and quality you depend on from Panduit®.

Features

  • Interoperable
  • Matrix technology
  • Smaller cable diameter than most Cat 6 patch cords and flexible cable design
  • 100% performance tested for wire map, next and return loss
  • Superior headroom warranty
  • Centred de-embedded plug
  • Integral pair manager
  • Patented tangle-free latch on modular plugs
  • Slender strain relief boot
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
  • The patented tangle-free latch prevents snags and provides easy release saving time on frequent moves, adds and changes
  • The patch cords slender strain relief boot provides easy access in high density applications

Specification

Jacket Color
Blue
Jacket Material
PVC
Series
NK6APC
Temperature Rating
140 deg F
Type
Class EA
Application
Used in all work area outlets and patch panels, wired to be compatible with both T568A and T568B wiring schemes, suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, wireless deployment, power over Ethernet, video streaming
Standard & Approvals
ANATEL 2511-12-6246, ANSI/TIA 568-C.2/1096-A, ARRA Compliant, Buy American Act Compliant, CE Certified, CM/LSZH Flammability Rating, EN 50174-2 2009/50575, IEC 60332-1/60754-2/61034-2, PoE Compliant, RoHS Compliant
Conductor Size
26 AWG
Category Type
Cat 6A
Conductor Type
F/UTP Copper
Connector Type
Modular Plug
Cord Length
7 ft
EANUCC13
0074983962051
