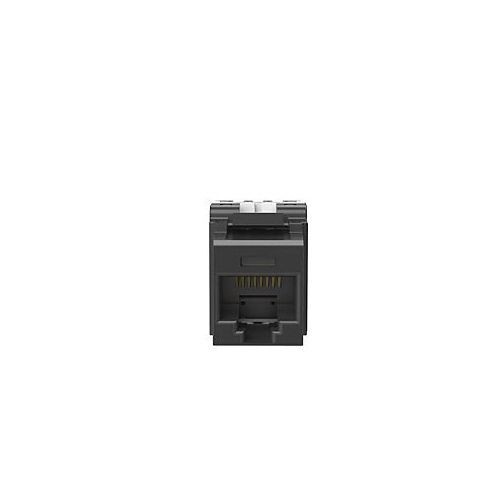

Panduit® NetKey® NK6X88MBL-Q Punch-Down Unshielded Jack Module, Keystone Cat 6A 8-Position Module, Surface Mount, ABS/Polycarbonate, Black

Selected NK6X88MBL-QPanduit® NetKey® NK6X88MBL-Q Punch-Down Unshielded Jack Module, Keystone Cat 6A 8-Position Module, Surface Mount, ABS/Polycarbonate, Black
NK6X88MBL-QPanduit® NetKey® NK6X88MBL-Q Punch-Down Unshielded Jack Module, Keystone Cat 6A 8-Position Module, Surface Mount, ABS/Polycarbonate, Black

Documents

Short Description

The NetKey® Category 6A UTP RJ45 Punch down Keystone Jack Module is designed to terminate 4-pair, 22 to 26 AWG twisted pair cable. Each jack is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 uin of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® faceplates, modular patch panels and surface mount boxes. The jack is black and includes 25 per package.

Features

  • 100% performance tested - confidence that each jack module delivers specified performance
  • 110 style punch down termination - utilizes industry standard termination style and includes wire retention cap
  • Modular - universal keystone jack modules snap-in and out of all NetKey ® faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
  • Individually serialized - marked with quality control number for future traceability

Specification

Type
Punch-Down Unshielded
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS 2011/65/EU/2015/863/EU, ANSI/TIA-568.2-C/1096-A Category 6A, IEC 60603-7, IEEE 802.3AF/802.3AT/802.3BT Type 3/4, UL 1863, CAN/CSA-C22.2 (UL File E129886), cULus Listed
Minimum Order Qty
1
Order Interval
1
Color
Black
Material
ABS/Polycarbonate
Mounting Type
Surface
EANUCC13
0074983067633
Module Type
Keystone Cat 6A 8-Position
Dimensions
1.16 in L x 0.65 in W x 0.9 in H
Catalog ID
PDTNK6X88MBL-Q
