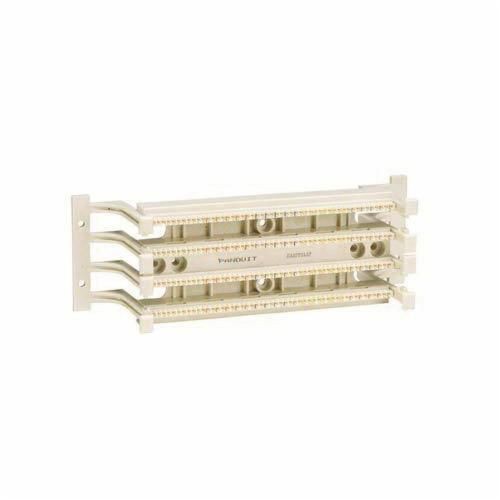

Panduit® Pan-Punch® P110BW100-X 100-Pair Punchdown Base With Legs, 3.45 in H x 10.71 in W x 10.71 in D
Panduit® Pan-Punch® P110BW100-X 100-Pair Punchdown Base With Legs, 3.45 in H x 10.71 in W x 10.71 in D
SKU: PDTP110BW100-X
Manufacturer Part Number: P110BW100-X
UPC: 074983620616
Documents
Features
- Compatible with existing 110 installations
- Allows cable jacket end to be within 1/2 in from IDC connection per TIA-568 requirements
- Helps keep gradual bends in cable which assures superior performance
- Contact is positively retained in the one piece connector housing
- Provides a sturdy base that cannot be accidentally removed from its mounting
- Easy 25 pair installation assists in long-term maintenance
- Easy installation of 4-pair cabling
- Positions and holds UTP cable for termination with Pan-Punch® 110 connecting blocks
- 100 pairs per base connectors
Specification
| Mounting Type | Panel |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Beige |
| Height | 3.45 in |
| Standard & Approvals | ANSI/TIA-568-C.2, IEC 60352-4, RoHS Compliant |
| Application | For used to connect, manage, identify and cross-connect communications equipment wiring in telecommunications closets and main distribution frames |
| Width | 10.71 in |
| Type | Cat 5e |
| Depth | 3.38 in |
| Catalog ID | PDTP110BW100-X |
