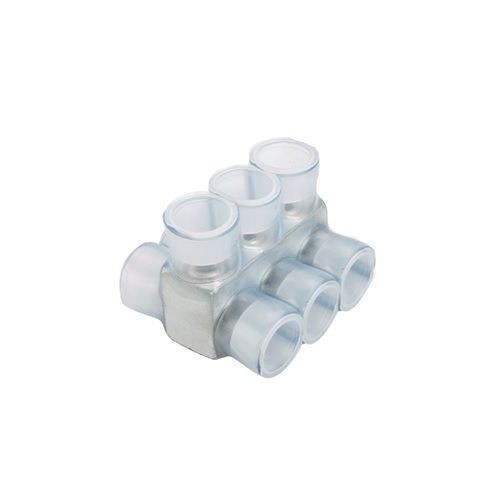

Panduit® Pan-Lug™ PCSB2/0-6-6 2-Sided 6-Port Multi-Tap Mechanical Connector, 14 to 2/0 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper/Stranded/Solid Conductor, Screw Installation, Aluminum/PVC
Panduit® Pan-Lug™ PCSB2/0-6-6 2-Sided 6-Port Multi-Tap Mechanical Connector, 14 to 2/0 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper/Stranded/Solid Conductor, Screw Installation, Aluminum/PVC
SKU: PDTPCSB2/0-6-6
Manufacturer Part Number: PCSB2/0-6-6
UPC: 074983774524
Short Description
Features
- Flexible design - can be used as a tap, splice, or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Wide wire range-taking capability minimizes inventory requirements
- Dual-sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
Specification
| Material | Aluminum/Clear PVC |
|---|---|
| Temperature Rating | 90 deg C |
| Type | Double-Sided |
| Voltage Rating | 600 VAC |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 486A-486B File No. E52164, CSA C22.2 No. 65-13 |
| Conductor Type | Stranded/Solid Aluminum/Copper |
| Specifications | 6-Ports, 3/16 in Hex Key, Screw Terminal |
| Series | PCSB |
| Includes | Each Port Pre-Filled with Oxide Inhibiting Joint Compound |
| Dimensions | 4.2 in L x 1.56 in W x 1.38 in H |
