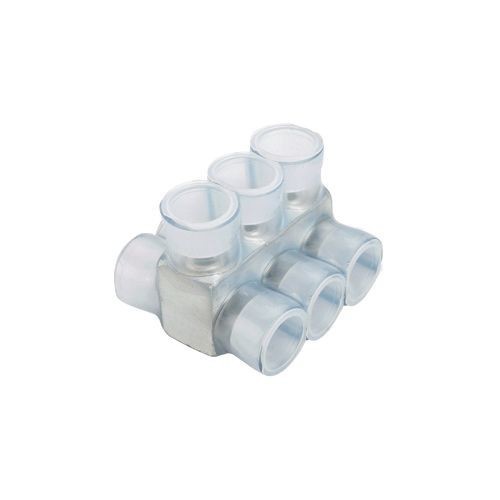

Panduit® Pan-Lug™ PCSB4-6-6Y 6-Port Double Sided Multi-Tap Mechanical Connector, 14 to 4 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper/Stranded/Solid Conductor, Screw Installation, Aluminum/PVC
Panduit® Pan-Lug™ PCSB4-6-6Y 6-Port Double Sided Multi-Tap Mechanical Connector, 14 to 4 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper/Stranded/Solid Conductor, Screw Installation, Aluminum/PVC
SKU: PDTPCSB4-6-6Y
Manufacturer Part Number: PCSB4-6-6Y
UPC: 074983598151
Documents
Features
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- 1/8 in hex key
- Flexible design - can be used as a tap, splice, or dead end connector
- Body made from high-strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range-taking capability minimizes inventory requirements
- Dual-sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high-strength, durable electrical contact between conductor and connector
- UL listed and CSA certified for use up to 600 VAC and temperature rated 90 deg C
- Clear PVC insulation
- PCSB4-6-6Y replaces PCSB4-6-6
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | PDTPCSB4-6-6Y |
| Dimensions | 3.35 in L x 1.5 in W x 1.25 in H |
| Series | PCSB |
| Specifications | 4 to 14 AWG Stranded, 10 to 14 AWG Solid |
| Temperature Rating | 90 deg C |
| Type | 6-Port Double Sided |
| Voltage Rating | 600 VAC |
| Application | For aluminum or copper code conductors |
| Standard & Approvals | UL 486A-486B File No E52164, C22.2 No 65-83, RoHS Compliant |
