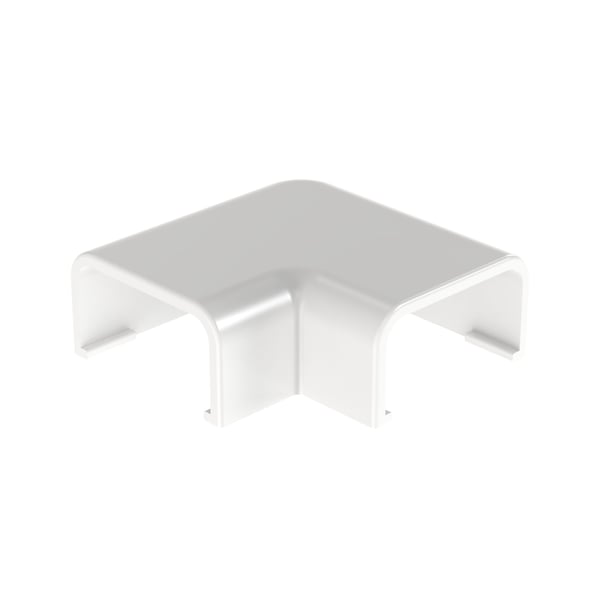

Panduit® Pan-Way® RAF3WH-E Low Voltage Right Angle Fitting, For Use With Pan-Way® LD3 Series Surface Raceway System, Rigid PVC
Panduit® Pan-Way® RAF3WH-E Low Voltage Right Angle Fitting, For Use With Pan-Way® LD3 Series Surface Raceway System, Rigid PVC
SKU: PDTRAF3WH-E
Manufacturer Part Number: RAF3WH-E
UPC: 074983587988
Features
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceiling
- The right angle fitting is a surface raceway fitting designed to transition your raceway around a corner while maintaining a 1 in bend radius
Specification
| Type | Low Voltage |
|---|---|
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, FT-4 Certified, RoHS Compliant, TIA/EIA Compliant, UL File No. 5A, UL File No. 94-V-0 Flammability Rating, UL Listed |
| Angle | 90 deg |
| Color | White |
| Application | For routing both power and data cabling along perimeter walls applications |
| Suitable For Use With | Pan-Way® LD3 Series Surface Raceway System |
| Mounting Type | Snap-On |
| Material | Rigid PVC |
| Dimensions | 1.82 in L x 1.82 in W x 0.44 in H |
