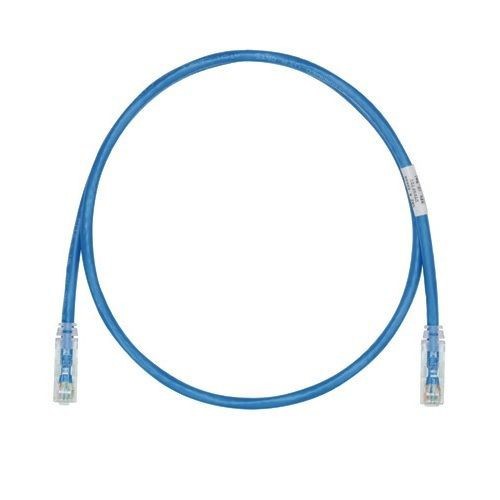

Panduit® PanNet® TX6-28™ UTP28SP3BU Class E Patch Cord, Cat 6, 28 AWG U/UTP Copper Conductor, Modular Plug Boot Connector, 3 ft L Cord, Blue

Selected Panduit® PanNet® TX6-28™ UTP28SP3BU Class E Patch Cord, Cat 6, 28 AWG U/UTP Copper Conductor, Modular Plug Boot Connector, 3 ft L Cord, Blue
Panduit® PanNet® TX6-28™ UTP28SP3BU Class E Patch Cord, Cat 6, 28 AWG U/UTP Copper Conductor, Modular Plug Boot Connector, 3 ft L Cord, Blue

Documents

Short Description

Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.

Features

  • 100% performance tested for wire map, NEXT and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Smaller diameter, flexible cable design
  • Robust construction

Specification

Jacket Color
Blue
Minimum Order Qty
1
Order Interval
1
Video
https://www.panduit.com/content/dam/panduit/en/products/media/5/35/135/2135/111192135.mp4
Category Type
Cat 6
Conductor Size
28 AWG
Connector Type
RJ45
Series
UTP28SP
Temperature Rating
167 deg F
Type
U/UTP Small Diameter
Application
1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital Video and Broadband/Baseband Analog Video, Voice/Data Systems and Voice Over Internet Protocol (VoIP)
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, ISO 11801 Class E, IEEE 802.3af, 802.3at, 802.3bt Type 3 and Type 4 for PoE Compliant, UL 1863, IEC 60603-7, cULus Listed, CAN/CSA-C22.2, UL File E129886, CE Compliant, CM/LSZH Dual-Rated Flammability Rating
Cord Length
3
Conductor Type
Stranded Tin Plated Copper
Catalog ID
PDTUTP28SP3BU
