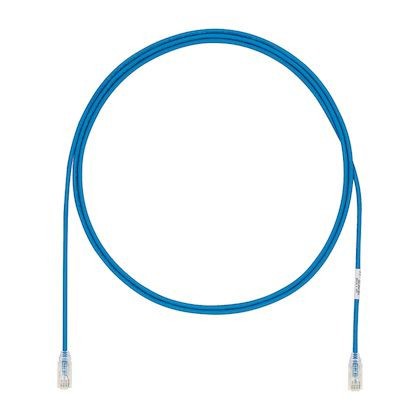

Panduit® PanNet® TX6A-28™ UTP28X10BU Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Solid Copper Conductor, RJ45 Modular Plug Connector, 10 ft L Cord
Panduit® PanNet® TX6A-28™ UTP28X10BU Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Solid Copper Conductor, RJ45 Modular Plug Connector, 10 ft L Cord
SKU: PDTUTP28X10BU
Manufacturer Part Number: UTP28X10BU
EAN: 0074983028771
UPC: 074983028771
Short Description
Features
- Color specific keys with positive and negative keying features
- 100% performance tested
- Centred de-embedded plug
- Integral pair manager
- Patented tangle-free latch
- Slender strain relief boot
- Robust construction
- The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with
- The patented tangle-free latch prevents snags and provides easy release saving time on frequent moves, adds and changes
Specification
| Jacket Color | Blue |
|---|---|
| Jacket Material | PVC |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | PDTUTP28X10BU |
| Category Type | Cat 6A |
| Conductor Size | 28 AWG |
| Conductor Type | F/UTP Solid Copper |
| Connector Type | RJ45 Modular Plug |
| Cord Length | 10 ft |
| Series | UTP28X |
| Temperature Rating | 167 deg F |
| Type | Small Diameter |
| Application | 10GBASE-T (Ethernet), Data Center Server Virtualization, Back Bone Aggregation, Data Center I/O Consolidation, Parallel Processing and High Speed Computing Applications |
| Standard & Approvals | ANSI/TIA 1096-A, ANSI/TIA 568.2-D, ARRA Compliant, Buy American Act Compliant, CAN/CSA C22.2, CE Certified, CM/LSZH Dual Rated Flammability Rating, cULus Listed, IEC 60603-7, IEEE 802.3af/802.3at/802.3bt, RoHS Compliant, UL 1863/File No. E129886 |
| EANUCC13 | 0074983028771 |
