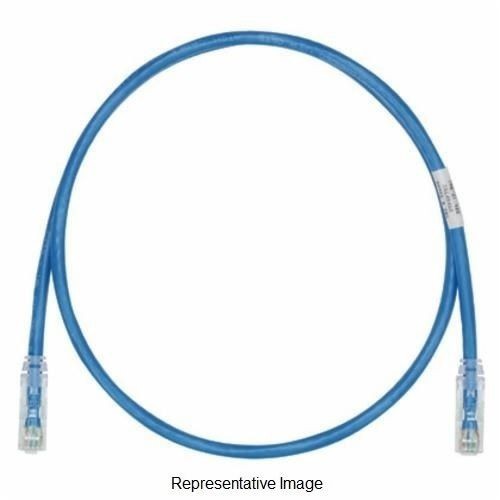

Panduit® PanNet® TX6™ PLUS UTPSP1BUY Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 1 ft L Cord, Blue

Selected Panduit® PanNet® TX6™ PLUS UTPSP1BUY Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 1 ft L Cord, Blue
Panduit® PanNet® TX6™ PLUS UTPSP1BUY Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 1 ft L Cord, Blue

Short Description

Category 6/Class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Features

  • 100% performance tested for wire map, NEXT and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Robust construction

Specification

Jacket Color
Blue
Series
UTPSP
Temperature Rating
140 deg F
Type
U/UTP
Application
10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video, Voice Over Internet Protocol (VoIP)
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, ISO 11801 Class E, IEEE 802.3af, 802.3at, 802.3bt Type 3 and Type 4 for PoE Compliant, UL 1863, IEC 60603-7, CE Compliant, CM Flammability Rating
Conductor Size
24 AWG
Category Type
Cat 6
Conductor Type
Stranded Copper
Connector Type
RJ45
Cord Length
1
