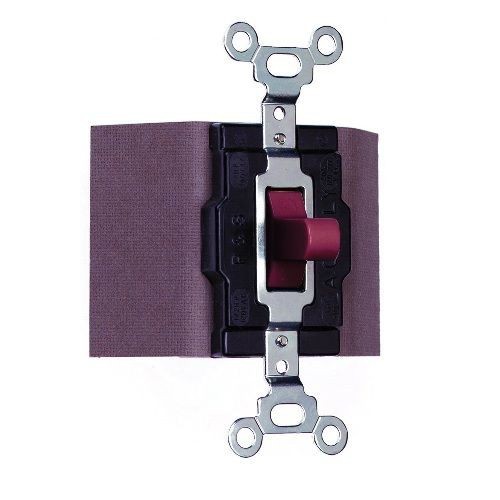

Pass & Seymour® 1251 Manual Controller Switch, 120/277 VAC, 20 A, 1 W Power Rating, 1NO Contact
Pass & Seymour® 1251 Manual Controller Switch, 120/277 VAC, 20 A, 1 W Power Rating, 1NO Contact
SKU: P-S1251
Manufacturer Part Number: 1251
UPC: 785007125108
Documents
Features
- Oversized silver alloy contacts for long life and better heat dissipation
- Side wired terminals accept 14 to 10 AWG copper or copper clad conductors
- Fiber terminal insulation barriers standard
- Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures
- Bodies, covers and toggles molded of durable nylon
- Locking switches supplied with one 1498-NT key
- Normally open
Specification
| Material | Nylon |
|---|---|
| Mounting | Wall |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 20 A |
| Catalog ID | P-S1251 |
| Color | Brown |
| Contact Configuration | 1NO |
| Contact Rating | 20 A, 120/277 VAC |
| Dimensions | 3.3 in H x 1.5 in W x 1.469 in D |
| Enclosure | NEMA 1 |
| Power Rating | 1 W |
| Voltage Rating | 120/277 VAC |
| Application | Industrial |
| Connection | Side Wire |
| Action | SPDT |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL Listed, ECCN EAR99 |
