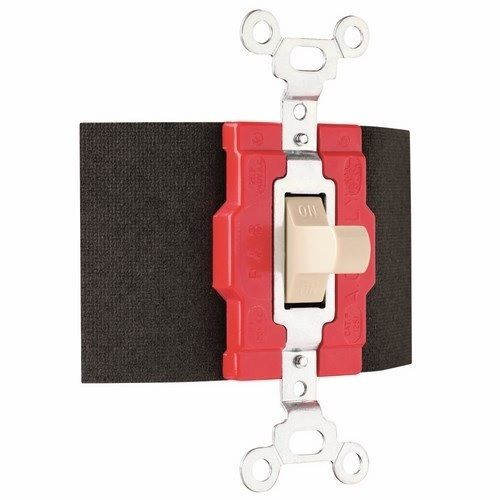

Pass & Seymour® 1251-I Momentary Contact Double Throw Manual Controller Switch, 120/277 VAC, 20 A, 1 hp at 120 VAC/2 hp at 240 VAC Power Rating, SPDT Contact
Pass & Seymour® 1251-I Momentary Contact Double Throw Manual Controller Switch, 120/277 VAC, 20 A, 1 hp at 120 VAC/2 hp at 240 VAC Power Rating, SPDT Contact
SKU: P-S1251-I
Manufacturer Part Number: 1251-I
UPC: 785007125115
Documents
Features
- Normally open
- Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures
- Side wired terminals accept NO 14 to 10 AWG copper or copper-clad conductors
- Oversize silver alloy contacts for long life and better heat dissipation
- Fiber terminal insulation barriers standard
Specification
| Material | Nylon |
|---|---|
| Mounting | Surface |
| Number Of Poles | 1 |
| Power Rating | 1 hp at 120 VAC, 2 hp at 240 VAC |
| Type | Momentary Contact |
| Voltage Rating | 120/277 VAC |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Amperage Rating | 20 A |
| Dimensions | 3.281 in H x 1.5 in W x 1.469 in D |
| Color | Ivory |
| Contact Configuration | SPDT |
| Enclosure | NEMA 1 |
