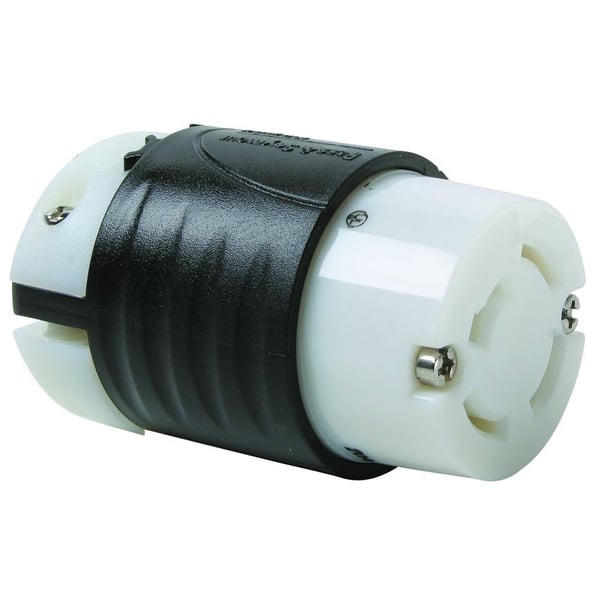

Pass & Seymour® Turnlok® 3333SS Locking Connector, 125/250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Pass & Seymour® Turnlok® 3333SS Locking Connector, 125/250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
SKU: P-S3333-SS
Manufacturer Part Number: 3333-SS
UPC: 785007333312
Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6/6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
- UL94 V2 flammability rating
- 2200 V minimum dielectric strength
- Non-NEMA
- Cord mounting
- 18 - 8 AWG
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | P-S3333-SS |
| Color | Black/White |
| Cord Diameter | 0.39 - 1.15 in |
| Dimensions | 3.33 in L x 2.2 in H |
| Enclosure | IP20 |
| Series | Turnlok® |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | CSA C22.2 No. 42 Certified, RoHS Complaint, UL 498 Listed |
