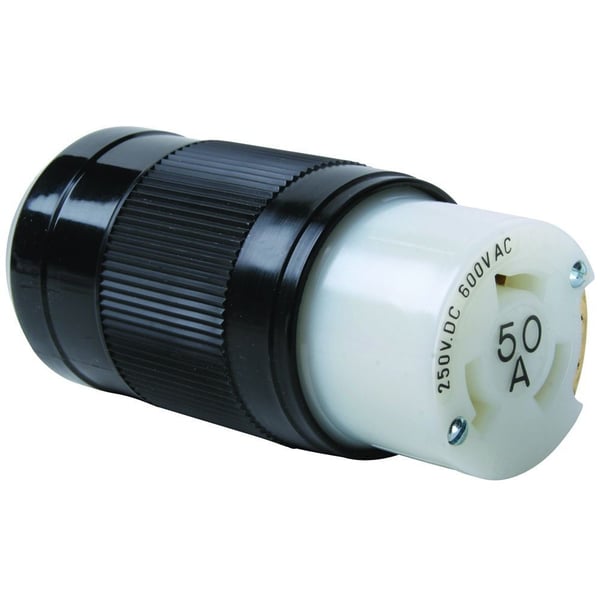

Pass & Seymour® Turnlok® 3764 3-Phase Locking Connector, 600 VAC, 50 A, 2 Poles, 4 Wires, Black/White
Pass & Seymour® Turnlok® 3764 3-Phase Locking Connector, 600 VAC, 50 A, 2 Poles, 4 Wires, Black/White
SKU: P-S3764
Manufacturer Part Number: 3764
UPC: 785007376401
Features
- Quality materials, durability, and time-tested design
- Corrosion resistant turnlock locking device Environmental Conditions
- UL94 V2 flammability rating
- 3000 V minimum dielectric strength
- 3 Phase
- Non-NEMA
- 18 AWG
Specification
| Grade | Industrial |
|---|---|
| Material | Thermoplastic |
| Number Of Poles | 2 |
| Number of Wires | 4 |
| Series | Turnlok® |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 600 VAC |
| Standard & Approvals | CSA Certified, RoHS Complaint, UL 498 Listed |
| Amperage Rating | 50 A |
| Dimensions | 2.26 in Dia x 4 in L |
| Color | Black/White |
| Cord Diameter | 0.68 - 1.13 in |
