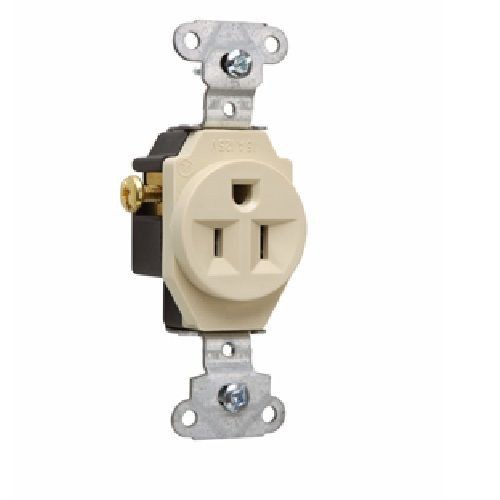

Pass & Seymour® 5251I Grounding Heavy Duty Single Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Pass & Seymour® 5251I Grounding Heavy Duty Single Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
SKU: P-S5251-I
Manufacturer Part Number: 5251-I
UPC: 785007525113
Documents
Features
- Wall mounting
- Wire ground connection
- Auto ground clip, back & side wire, zinc steel strap
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Heavy duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tr-drive steel terminal screws. Internal screw pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current temperature rise
- Wattage of electrical power is expressed in amps and volts
- -40 to +60 deg C without impact continuous operating temperature
- Dielectric strength withstands 2000 V
- UL 94 V-2 flammability rating
- Residential grade
- Zinc steel strap
- 4 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Amperage Rating | 15 A |
| Color | Ivory |
| Dimensions | 3.3 in H x 1.32 in W x 1.08 in D |
| Standard & Approvals | CSA C22.2 NO 42 Certified, UL498 Listed, RoHS Complaint |
