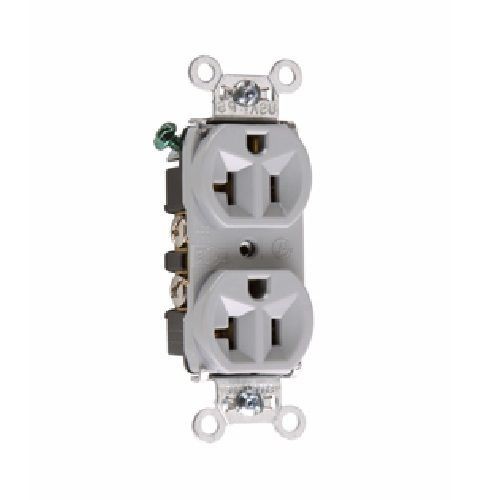

Pass & Seymour® 5362GRY Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Pass & Seymour® 5362GRY Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU: P-S5362-GRY
Manufacturer Part Number: 5362-GRY
UPC: 785007536218
Documents
Features
- Wall mounting
- Corrosion resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Tri-drive terminal and mounting screws
- 0.032 in thick, brass, triple-wipe power contacts for lasting retention
- 8 hole internal screw-pressure-plate back wire terminals accept No 14 - 10 AWG solid or stranded copper or copper-clad conductors
- Impact resistant nylon face
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Wattage of electrical power is expressed in Amps and Volts
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Protection response time in less than one nanosecond
- -40 to +60 deg C without impact continuous operating temperature
- UL 94 V-2 flammability rating
- Dielectric strength withstands 2000 V
- Extra heavy duty
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 NO 42 Certified, UL498 Listed, RoHS Complaint |
| Amperage Rating | 20 A |
| Dimensions | 1.322 in L x 0.78 in W x 3.281 in H |
| Color | Gray |
