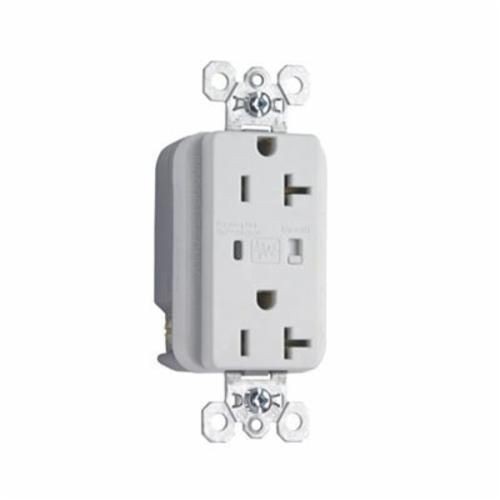

Pass & Seymour® 5362WSP Duplex Extra Heavy Duty Surge Protective TVSS Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Pass & Seymour® 5362WSP Duplex Extra Heavy Duty Surge Protective TVSS Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: P-S5362-WSP
Manufacturer Part Number: 5362-WSP
UPC: 785007193442
Documents
Features
- Wall mounting
- Solid-state LED monitor has 25-year minimum life expectancy
- A high visibility, wide-angle lens indicates protection is in place
- Steady green protected, flashing red not protected, OFF no power to unit LED Indication
- Audible alarm alert of MOV damage
- Alarm able to be turned On/Off
- Wrap-around steel strap for structural integrity
- Auto-ground is standard, for easier installation
- Impact resistant nylon exterior resists impacts and scrapes
- Triple-wipe, copper-alloy contacts for superior, more dependable connection
- External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors
- External pressure plate feature allows two conductors to be terminated by a single screw
- Thermal protection in 3 modes
- 3 17 mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection
- Protection response time in less than one nanosecond
- UL 94 V-2 flammability rating
- Extra heavy duty
- 14 - 10 AWG
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grade | Commercial |
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | White |
| Temperature Rating | -4 to 131 deg F |
| Terminal Type | Back and Side Wired |
| Type | TVSS |
| Voltage Rating | 125 VAC |
| Standard & Approvals | ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A“ (Ring Wave) “B“ (Unidirectional Impulse), CSA C22.2 NO 42, cUL, UL1449, UL498, RoHS Complaint |
| Dimensions | 1.7 in L x 1.25 in W x 3.75 in H |
| Catalog ID | P-S5362-WSP |
| Video | https://www.youtube.com/watch?v=KpbwLH782EI |
