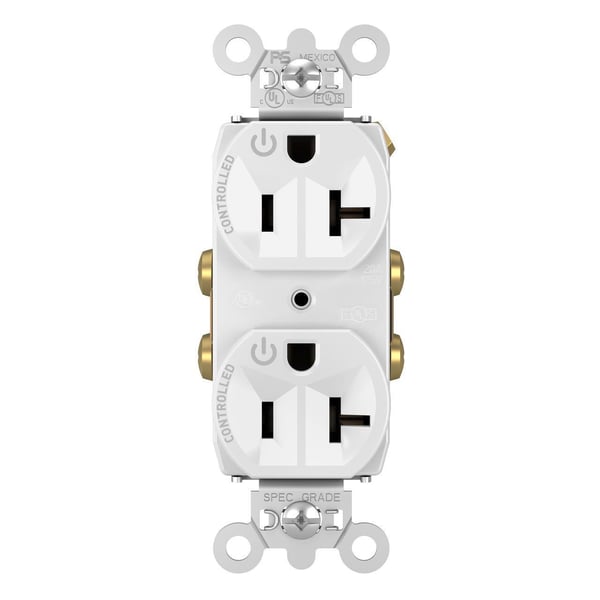

Pass & Seymour® 5362CDW Decorator Duplex Dual Controlled Plug Load Straight Blade Receptacle, 125 V AC, 20 A, White

Selected Pass Seymour 5362CDW 2
Pass Seymour 5362CDW 2

Documents

Short Description

This durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements. The controlled receptacle marking printed on the face of the receptacle is both NEMA approved and compliant with the National electrical Code®, CA Title 24, and ASHRAE energy efficiency standard 90.1. This clear, permanent marking helps end users differentiate controlled receptacles from others. Corrosion resistant plated steel straps and high strength nylon faces make these receptacles perfect for any hard use application. They feature 1-piece, triple wipe brass contacts for lasting retention. And screw pressure plate back wiring makes installation fast and easy.

Features

  • Can be wired to any number of system-based or stand-alone plug load control solutions
  • 0.032 in thick, brass, triple-wipe power contacts for lasting retention
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
  • Impact-resistant nylon face
  • 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
  • Tri-drive terminal and mounting screws
  • Auto-ground clip assures positive ground

Specification

Grade
Commercial/Specification
Material
Nylon/PVC
Terminal Type
Back/Side Wire
Color
White
Dimensions
0.78 in L x 1.322 in W x 3.281 in H
Voltage Rating
125 V AC
Amperage Rating
20 A
Temperature Rating
-40 to 60 deg C
NEMA Rating
NEMA 5-20R
Type
Decorator Duplex Dual Controlled Plug Load
