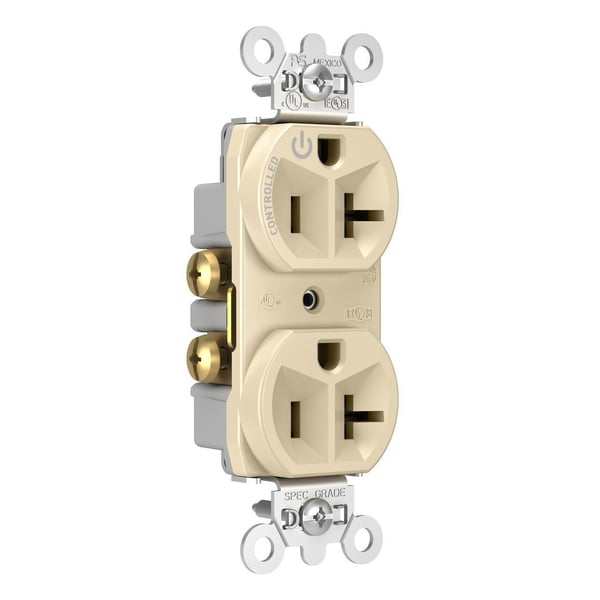

Pass & Seymour® 5362CHI Decorator Duplex Half Controlled Plug Load Straight Blade Receptacle, 125 VAC, 20 A, Ivory

Selected Pass Seymour 5362CHI
Pass Seymour 5362CHI

Documents

Short Description

This durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements. The controlled receptacle marking printed on the face of the receptacle is both NEMA approved and compliant with the National electrical Code®, CA Title 24, and ASHRAE energy efficiency standard 90.1. This clear, permanent marking helps end users differentiate controlled receptacles from others. Corrosion resistant plated steel straps and high strength nylon faces make these receptacles perfect for any hard use application. They feature 1-piece, triple wipe brass contacts for lasting retention. And screw pressure plate back wiring makes installation fast and easy.

Features

  • Can be wired to any number of system-based or stand-alone plug load control solutions
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
  • 0.032 in thick, brass, triple-wipe power contacts for lasting retention
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
  • Terminal compartments isolated from each other for positive conductor containment
  • Tri-drive terminal and mounting screws
  • Auto-ground clip assures positive ground

Specification

Material
Nylon/PVC
Terminal Type
Back/Side Wire
Temperature Rating
-40 to 60 deg C
Grade
Commercial/Specification
Type
Decorator Duplex Half Controlled Plug Load
Voltage Rating
125 VAC
Color
Ivory
NEMA Rating
NEMA 5-20R
Amperage Rating
20 A
Dimensions
0.78 in L x 1.322 in W x 3.281 in H
