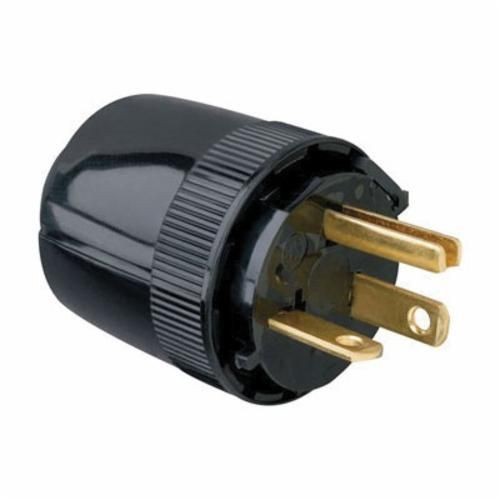

Pass & Seymour® 5765-BK Angled Straight Blade Plug, 125 VAC, 20 A, 3 Poles, 4 Wires, Black
Pass & Seymour® 5765-BK Angled Straight Blade Plug, 125 VAC, 20 A, 3 Poles, 4 Wires, Black
SKU: P-S5765-BK
Manufacturer Part Number: 5765-BK
UPC: 785007576511
Documents
Features
- All nylon construction, provides excellent impact and chemical resistance
- Simple turn and twist assembly for quick installation
- Ready-to-wire from factory, saves time and money
- All black, perfect for stage and entertainment applications
- Internal finger grips automatically adjust to securely grip the cord jacket
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20P |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Black |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Dimensions | 2.56 in H x 1.53 in W x 1.84 in D |
| Cord Diameter | 0.23 - 0.655 in |
| Catalog ID | P-S5765-BK |
| Standard & Approvals | RoHS Compliant, UL 498 Listed |
| Type | Angled |
