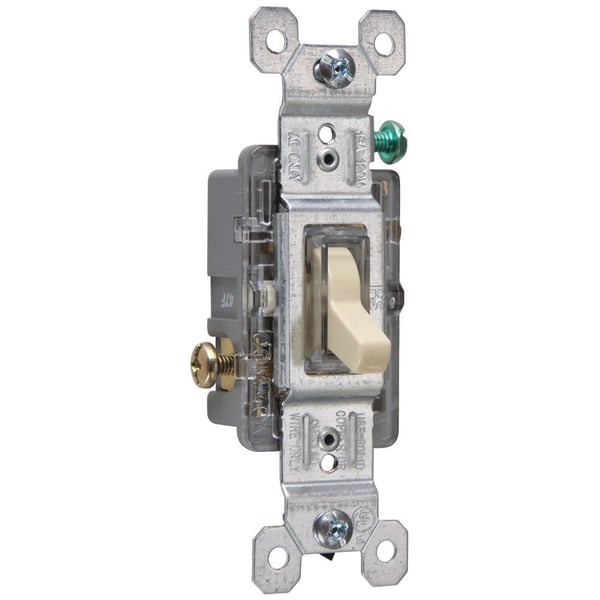

Pass & Seymour® TradeMaster® 660ISLG Lighted Self-Grounding Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating

Selected 660ISLGPass & Seymour® TradeMaster® 660ISLG Lighted Self-Grounding Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating
660ISLGPass & Seymour® TradeMaster® 660ISLG Lighted Self-Grounding Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating

Documents

Short Description

The TradeMaster® Single-Pole/Illuminated Toggle Switch combines a traditional look with reliable, time tested operation and subtle illumination that makes it easier to locate in dark areas.

Features

  • Tri-drive ground, terminal and mounting screws
  • Easy access green hex head ground screw
  • Side wire 14 to 12 AWG, push wire 14 AWG
  • Extra long strap
  • High impact resistant construction
  • Tri-drive ground screws
  • Smooth quiet toggle action

Specification

Material
Thermoplastic
Mounting
Wall
Number Of Poles
1
Power Rating
1/2 hp
Terminal Type
Push/Side Wired/Screw/Grounded
Type
Lighted Self-Grounding
Voltage Rating
120 VAC
Application
Commercial Applications
Standard & Approvals
UL 20
Amperage Rating
15 A
Actuator
Toggle
Color
Ivory
Dimensions
4.25 in H x 1.25 in W x 1.09 in D
