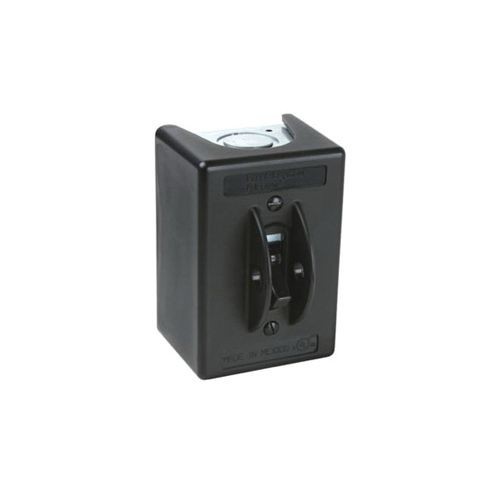

Pass & Seymour® 7813PMD 3-Way Manual Controller Switch, 600 VAC, 30 A, 60 Hz
Pass & Seymour® 7813PMD 3-Way Manual Controller Switch, 600 VAC, 30 A, 60 Hz
SKU: P-S7813-PMD
Manufacturer Part Number: 7813-PMD
UPC: 785007267693
Documents
Features
- High horsepower rating of 20 hp
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- Suitable as motor disconnect
- 10 kA at 600 VAC at interrupt rating
- Class J fuse provisions
- AC motor controller
- Glass-reinforced thermoplastic material
Specification
| Material | Thermoplastic |
|---|---|
| Number Of Poles | 2 |
| Operating Cycles | 1000/5000 Cycles |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | P-S7813-PMD |
| Contact Rating | 600 VAC at 30 A |
| Dimensions | 2.825 in W x 2.8 in D x 3.91 in H |
| Enclosure | NEMA 7/9 |
| Environmental Conditions | -40 to 75 deg C Operating Temperature |
| Voltage Rating | 600 VAC |
| Standard & Approvals | UL 508, cULus Listed, CSA C22.23 14, RoHS Compliant |
