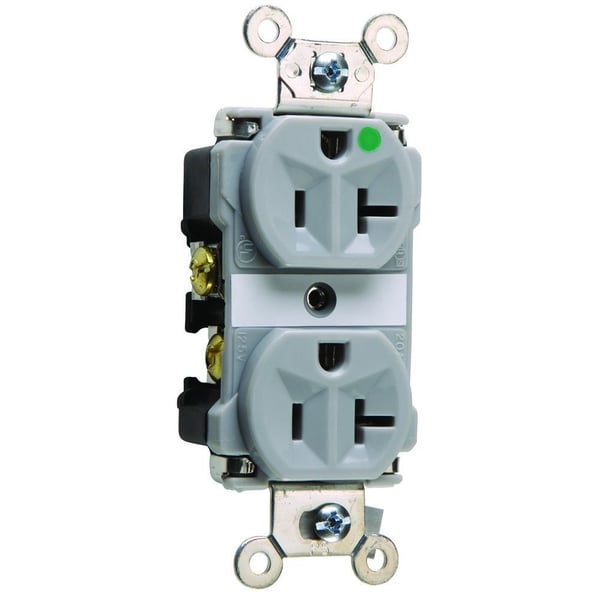

Pass & Seymour® 8300GRY Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Pass & Seymour® 8300GRY Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU: P-S8300-GRY
Manufacturer Part Number: 8300GRY
UPC: 785007830088
Documents
Features
- One-piece nickel plated brass mounting strap with integral ground
- Strap tabs wrap-around and lock down on face to prevent strap from separating from face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.04 in THK nickel plated brass triple-wipe power contacts for lasting retention
- Easily accessible break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and back body
- Oversized NO 10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External nickel plated screw-pressure-plate back wire clamps with NO 10 brass terminal screws for visual assurance of a good connection
- Line terminals accept 14 to 10 AWG stranded or solid copper-clad conductors
- Auto-ground clip assures positive ground
- Illuminated version features exclusive LED lamp with solder connection for long durable life (10 to 12 years)
- 150 VAC, 18 mm dual pack MOV rating
- 500 VAC suppressed voltage
- 210 J energy
- 13 kA surge capability
- Three thermal fuses (128 deg C)
- -40 to 85 deg C storage temperature
- UL92 V2 flammability rating
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grade | Hospital |
| Material | Nylon/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | P-S8300-GRY |
| Color | Gray |
| Dimensions | 1.625 in L x 0.9 in W x 3.281 in H |
| Enclosure | NEMA WD-1/WD-6 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Extra Heavy Duty |
| Voltage Rating | 125 VAC |
| Application | Healthcare, Education and Institutional |
| Standard & Approvals | File No E140596, UL 498, 1449, Federal Specification WC596, File No LR16063, CSA-C22.2 No 42, ANSI/EEE C62.41, ANSI/IEEE C62.45, NEMA WD-1, WD-6, RoHS Compliant |
