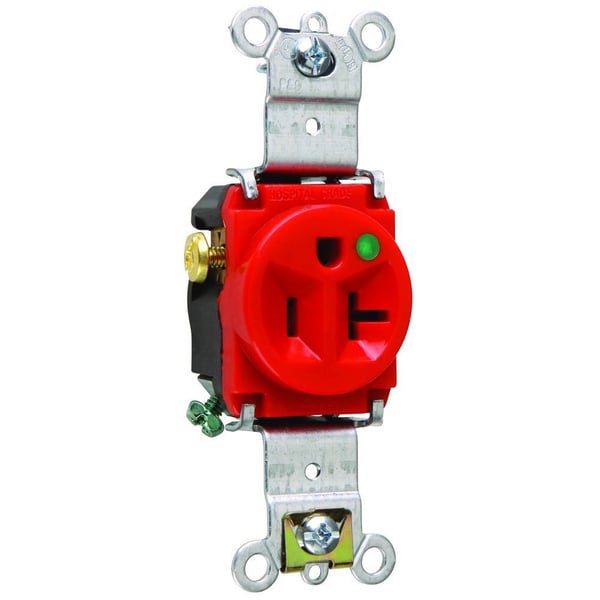

Pass & Seymour® 8301RED Heavy Duty Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Pass & Seymour® 8301RED Heavy Duty Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU: P-S8301-RED
Manufacturer Part Number: 8301-RED
UPC: 785007830392
Documents
Features
- Wall mounting
- Heavy duty, zinc plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 in thick, brass, triple-wipe power contacts for lasting retention
- Impact resistant nylon face and thermoplastic back body
- Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire
- Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground
- Dielectric strength withstands 2000V
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current temperature rise
- Hospital grade
- -40 to +60 deg C without impact continuous operating temperature
- UL 94 V-2 flammability rating
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cUL, UL498 Listed, CSA C22.2 NO 42, RoHS Complaint |
| Amperage Rating | 20 A |
| Dimensions | 1.32 in L x 1.093 in W x 3.68 in H |
| Color | Red |
