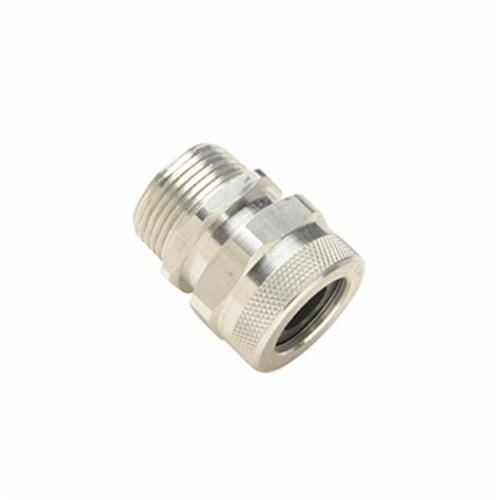

Pass & Seymour® Flexcor® CG755622 F2 Corrosion Resistant Deluxe Straight Cord Grip, 3/4 in Trade, 0.5 to 0.56 in OD Cable Openings, Aluminum

Selected P SCG755622
P SCG755622

Documents

Short Description

Deluxe aluminum cord grips are UL listed and CSA certified for use in both indoor and outdoor applications to prevent cable pullout, to control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. Cord grips are available in a wide range of conduit sizes from 1/4 to 3 in straight, 90 and 45 deg styles. A uniquely designed combination tightening surface with both a hex area and a knurled surface provides extra gripping for initial hand tightening.

Features

  • A unique design with a combination tightening surface that includes both a hex area and knurled surface providing extra gripping for initial hand tightening and ease of installation
  • Anti-friction washer that fits between the nut and bushing for easier compression and a tight seal
  • All aluminum design offers corrosion resistance and industrial strength for heavy duty applications

Specification

Material
Aluminum
Series
CG Series Flexcor®
Trade Size
3/4 in
Type
F2 Corrosion Resistant Deluxe Straight
Application
Indoor and Outdoor
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, CSA Certified, UL Listed
Cable Openings
0.5 to 0.56 in OD
Connection Type
MNPT
