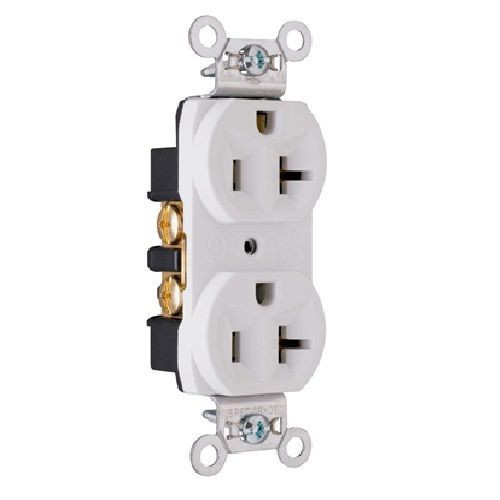

Pass & Seymour® CRB5362W Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Pass & Seymour® CRB5362W Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: P-SCRB5362-W
Manufacturer Part Number: CRB5362-W
UPC: 785007210231
Documents
Features
- Wall mounting
- Auto ground clip assures positive ground
- dielectric strength withstands 2000V
- Corrosion resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 in thick brass triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact resistant nylon face and thermoplastic back body
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 awg solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal
- Temperature rise maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- UL 94 V-2 flammability rating
- Residential
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 NO 42 Certified, UL 498 Listed, RoHS Complaint |
| Amperage Rating | 20 A |
| Color | White |
| Dimensions | 3.3 in H x 1.322 in W x 0.78 in D |
