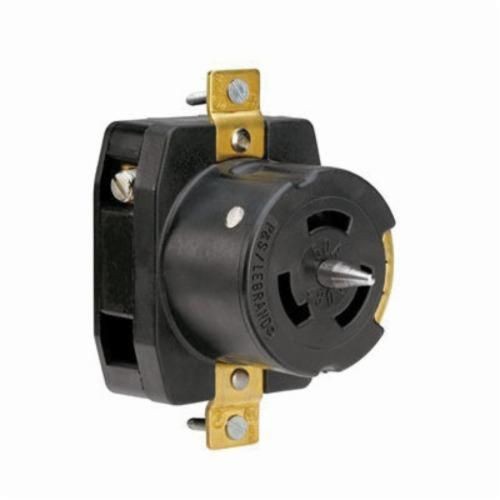

Pass & Seymour® Turnlok® CS8469 3-Phase Single Locking Receptacle, 480 VAC, 50 A, 2 Poles, 15 Wires, Black
Pass & Seymour® Turnlok® CS8469 3-Phase Single Locking Receptacle, 480 VAC, 50 A, 2 Poles, 15 Wires, Black
SKU: P-SCS8469
Manufacturer Part Number: CS8469
UPC: 785007846904
Documents
Features
- 3 phase
- California standard, corrosion resistant, industrial spec grade turnlock locking device
- Non-NEMA
- Chemical- and impact resistant nylon housing features horizontal, easy-grip ribs on back body
- Clear thermoplastic terminal chamber for clear view of terminals and wire connections
- Exclusive, rugged integral cord grip accepts a wide range of cord widths, no external parts to snag or break off
- NEMA configurations always visible for fast without disconnecting
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Comes disassembled and ready-to-wire for quick installation
- Tri-drive assembly screws conveniently accept slotted, Phillips & Robertson screwdrivers
- Clear, high-impact-resistant thermoplastic terminal chamber for clear view of connection
- Double-wipe power contacts withstand work-site abuse and ensure lasting blade retention
- 18 - 0 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Thermoplastic |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | Turnlok® |
| Temperature Rating | -40 to 75 deg C |
| Voltage Rating | 480 VAC |
| Standard & Approvals | RoHS Complaint, UL 498 Listed |
| Amperage Rating | 50 A |
| Color | Black |
| Dimensions | 3.3 in Dia x 3.28 in H x 1.08 in W x 1.98 in D |
