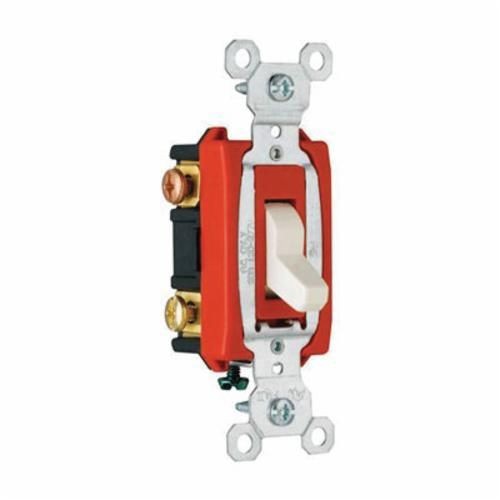

Pass & Seymour® CSB20AC3LA 3-Way Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 3 W Power Rating
Pass & Seymour® CSB20AC3LA 3-Way Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 3 W Power Rating
SKU: P-SCSB20AC3-LA
Manufacturer Part Number: CSB20AC3-LA
UPC: 785007126280
Documents
Short Description
Features
- One-piece plated steel strap for corrosion-resistance
- Heavy-duty bumpers for quiet, smooth operation
- Oversized silver-alloy contacts for long life and better heat dissipation
- Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce
- Shallow design for easier installation
- Glass-reinforced nylon back body for durability and strength
- Cam control and spring actuator for positive "makes and breaks" with a minimum of arcing
- Locking support provides resistance to face and back body separation
- Side and external screw-pressure plate back wire with NO 14 - 10 AWG copper or copper-clad wire
- Glass-reinforced nylon back body, nylon front body
- Back and side wire connection
- UL 94-V2 Flammability
Specification
| Material | Nylon |
|---|---|
| Mounting | Wall |
| Operating Cycles | 50000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Cam |
| Amperage Rating | 20 A |
| Catalog ID | P-SCSB20AC3-LA |
| Color | Light Almond |
| Dimensions | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions | -40 to 115 deg C |
| Terminal Type | Screw |
| Type | 3-Way Heavy Duty |
| Voltage Rating | 120/277 VAC |
| Application | For commercial/residential uses such as retail, office, institutional, hospitality/lodging and multiple dwelling |
| Standard & Approvals | CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1 and WD-6, RoHS Complaint, UL File No. E140597 Listed |
