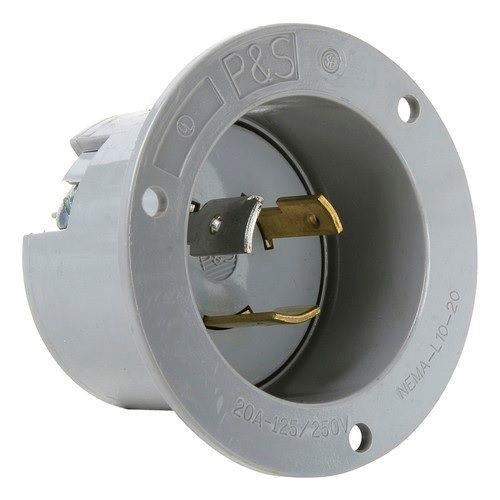

Pass & Seymour® Turnlok® L1020-FI 3-Phase Locking Flanged Inlet, 125/250 VAC, 20 A, 2 Poles, 3 Wires, Gray
Pass & Seymour® Turnlok® L1020-FI 3-Phase Locking Flanged Inlet, 125/250 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU: P-SL1020-FI
Manufacturer Part Number: L1020FI
UPC: 785007102024
Documents
Features
- Interior components constructed of high-grade brass material for physical and electrical integrity
- High impact thermoplastic housing withstands on the job abuse
- Ratings and nema configurations are clearly visible on flange face, for fast ID while in use
Specification
| Grade | Industrial |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA L10-20 |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | P-SL1020-FI |
| Color | Gray |
| Dimensions | 2.87 in Dia x 1.65 in D |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | UL 498 Listed, CSA Certified |
