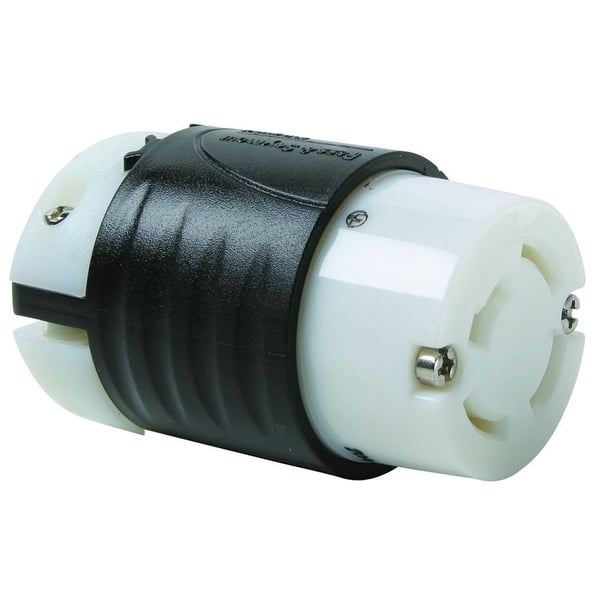

Pass & Seymour® Turnlok® L1220-C 3-Phase Locking Connector, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray
Pass & Seymour® Turnlok® L1220-C 3-Phase Locking Connector, 480 VAC, 20 A, 3 Poles, 4 Wires, Gray
SKU: P-SL1220-C
Manufacturer Part Number: L1220-C
UPC: 785007122015
Documents
Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
- Industrial spec grade locking device
- UL 94-V2 flammability rating
- 3000 V minimum dielectric strength
- 3 phase
- Round portable service cord mounting
- 18 - 10 AWG
Specification
| Grade | Industrial |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Amperage Rating | 20 A |
| Dimensions | 2.2 in Dia x 3.33 in L |
| Color | Gray |
| Cord Diameter | 0.39 - 1.15 in |
| Enclosure | IP20 |
| Horsepower | 5 hp |
| Material | Nylon/Rubber |
| Standard & Approvals | CSA Certified, Federal Specification WC596, RoHS Complaint, UL 498 Listed |
| Voltage Rating | 480 VAC |
| Series | Turnlok® |
| NEMA Rating | NEMA L12-20P |
