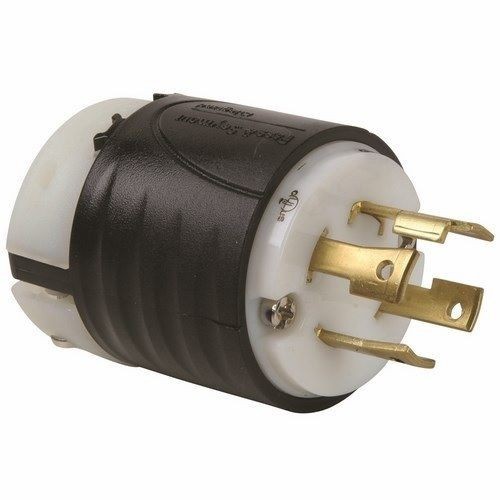

Pass & Seymour® Turnlok® L1220-P Locking Plug, 480 VAC, 20 A, 3 Poles, 3 Wires, Black/White
Pass & Seymour® Turnlok® L1220-P Locking Plug, 480 VAC, 20 A, 3 Poles, 3 Wires, Black/White
SKU: P-SL1220-P
Manufacturer Part Number: L1220-P
UPC: 785007122046
Documents
Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
- Black back, white front body
- 3 phase
- 0.225 - 1.15 in Cord
Specification
| Grade | Commercial |
|---|---|
| Material | Thermoplastic |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Series | Turnlok® |
| Voltage Rating | 480 VAC |
| Standard & Approvals | CSA Certified, Federal Specified, RoHS Complaint, UL (498) Listed |
| Amperage Rating | 20 A |
| Dimensions | 3-3/4 in L |
| Color | Black/White |
| Cord Diameter | 10 - 18 AWG |
| NEMA Rating | NEMA L12-20P |
