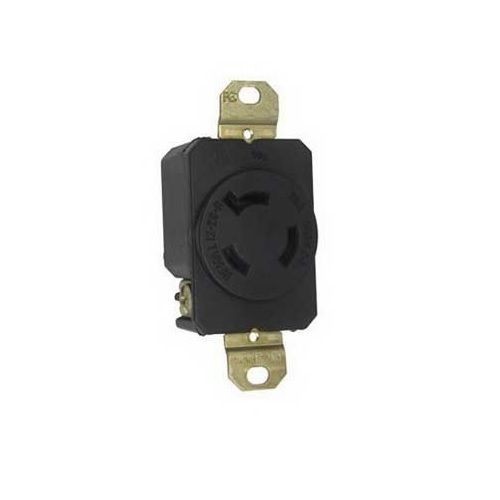

Pass & Seymour® L1220-R 3-Phase Single Turnlok Receptacle, 480 VAC, 20 A, 3 Poles, 3 Wires, Black
Pass & Seymour® L1220-R 3-Phase Single Turnlok Receptacle, 480 VAC, 20 A, 3 Poles, 3 Wires, Black
SKU: P-SL1220-R
Manufacturer Part Number: L1220R
UPC: 785007122053
Documents
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength
- Face color-coding by voltage facilitates locating and mating of proper devices
- One-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands
- Side and external screw-pressure-plate back wire capability
- Accepts 14 to 10 AWG wire
Specification
| Grade | Specification |
|---|---|
| Material | Nylon/Thermoplastic |
| NEMA Rating | NEMA L1220 |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Type | Single |
| Voltage Rating | 480 VAC |
| Standard & Approvals | UL 498, Federal Specification, RoHS Compliant |
| Amperage Rating | 20 A |
| Dimensions | 3.3 in H x 1.61 in W x 1.19 in D |
