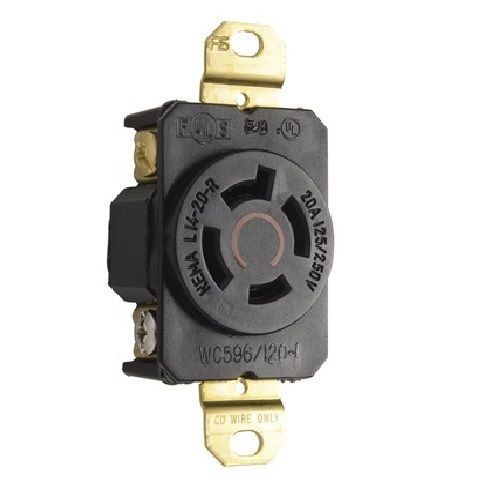

Pass & Seymour® Turnlok® L1420-R Single Locking Receptacle, 125/250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Pass & Seymour® Turnlok® L1420-R Single Locking Receptacle, 125/250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
SKU: P-SL1420-R
Manufacturer Part Number: L1420-R
UPC: 785007142051
Documents
Features
- 3 phase
- Locking Device, impact resistant
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength
- Face color coding by voltage facilitates locating and mating of proper devices
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands
- Side and external screw-pressure-plate back wire capability
- 2 line to line hp
- 4 AWG
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA L14-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | Turnlok® |
| Temperature Rating | -40 to 75 deg C |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | RoHS Complaint, UL 498 Listed |
| Amperage Rating | 20 A |
| Dimensions | 2.3 in Dia x 3.28 in H x 1.61 in W x 1.19 in D |
| Color | Black/White |
| Horsepower | 2 hp |
