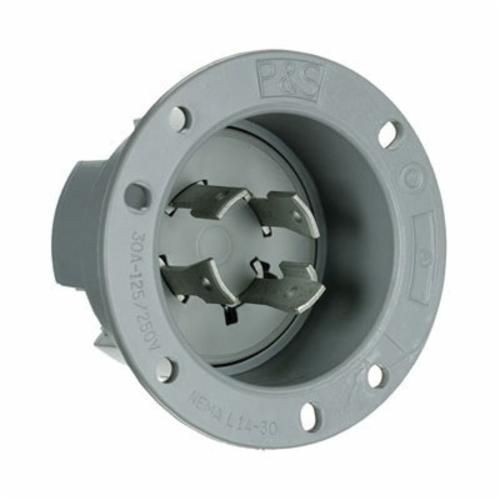

Pass & Seymour® Turnlok® L1430-FI Locking Flanged Inlet, 125/250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Pass & Seymour® Turnlok® L1430-FI Locking Flanged Inlet, 125/250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
SKU: P-SL1430-FI
Manufacturer Part Number: L1430-FI
UPC: 785007143027
Documents
Features
- Interior components constructed of high-grade brass material for physical and electrical integrity
- High-impact thermoplastic housing withstands on-the-job abuse
- Ratings and NEMA configurations are clearly visible on flange face, for fast i.d. while in use
- Locking device, impact resistant
- Specification grade
- 4 AWG
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA L14-30P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | Turnlok® |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125/250 VAC |
| Application | Commercial |
| Standard & Approvals | RoHS Complaint, UL 498 Listed |
| Amperage Rating | 30 A |
| Dimensions | 3.1 in Dia x 1.75 in L |
| Color | Black/White |
