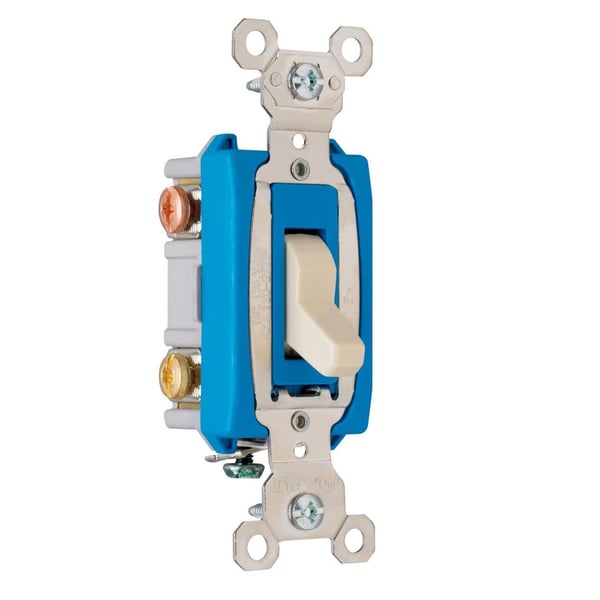

Pass & Seymour® PS15AC3I 3-Way Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, 3 W Power Rating

Selected Pass & Seymour® PS15AC3I 3-Way Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, 3 W Power Rating
Pass & Seymour® PS15AC3I 3-Way Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, 3 W Power Rating

Documents

Short Description

Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical- and impact-resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Featuring auto-ground and external, screw-pressure plate back wiring on all terminals for fast, easy installation and excellent electrical connection. Oversize silver alloy contacts help ensure long life and better heat dissipation.

Features

  • One-piece plated steel strap for corrosion-resistance
  • Heavy-duty bumpers for quiet, smooth operation
  • Oversized silver-alloy contacts for long life and better heat dissipation
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce
  • Shallow design for easier installation
  • Glass-reinforced nylon back body for durability and strength
  • Cam control and spring actuator for positive "makes and breaks" with a minimum of arcing
  • Locking support provides resistance to face and back body separation
  • Side and external screw-pressure plate back wire with NO 14 - 10 AWG copper or copper-clad wire
  • Bare insulation
  • Industrial EHD specification grade
  • 1/2 hp at 120 VAC, 2 hp at 240 VAC
  • Back and side wire connection
  • UL 94-V2 Flammability

Specification

Material
Thermoplastic
Mounting
Wall
Operating Cycles
50000
Minimum Order Qty
1
Order Interval
1
Actuator
Cam
Amperage Rating
15 A
Catalog ID
P-SPS15AC3-I
Color
Ivory
Dimensions
3.3 in H x 1.32 in W x 1.073 in D
Environmental Conditions
-40 to 115 deg C
Power Rating
1/2 hp/2 hp
Terminal Type
Screw
Voltage Rating
120/277 VAC
Application
For industrial uses such as health care, education and institutional
Standard & Approvals
CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed
Type
3-Way Heavy Duty
