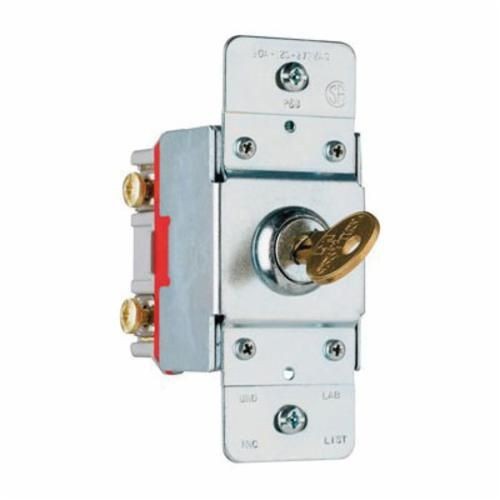

Pass & Seymour® PS20AC1KL Heavy Duty Keylock Switch, 120/277 VAC, 20 A, 2 hp Power Rating, SPST Contact

Selected PS20AC1-KLPass & Seymour® PS20AC1KL Heavy Duty Keylock Switch, 120/277 VAC, 20 A, 2 hp Power Rating, SPST Contact
PS20AC1-KLPass & Seymour® PS20AC1KL Heavy Duty Keylock Switch, 120/277 VAC, 20 A, 2 hp Power Rating, SPST Contact

Documents

Short Description

These rugged switches provide an easy, economical solution for restricting use. They use a sturdy, single-design key as a toggle, with the key removable in either the ON or OFF position. Extra-rugged construction makes these lock switches a dependable choice for any high-use application.

Features

  • Accepts #14 - #10 AWG. Operated by cam lock for maximum security in critical areas
  • Recommended for tamper-proof installation in schools, public housing, trailer parks, freight yards, etc
  • Uses same key as Cat.# 4600 cast enclosure, key can be removed in both positions
  • 1 hp at 120 Vac, 2 hp at 240 Vac
  • Glass-reinforced nylon body
  • Toggle key actuator

Specification

Material
Nylon
Mounting
Wall
Number Of Poles
1
Power Rating
2 hp
Voltage Rating
120/277 VAC
Application
Indoor, Floor Polishers and Sanders
Standard & Approvals
CSA Certified, NEMA WD-1, WD-6, RoHS Complaint, UL Listed
Amperage Rating
20 A
Actuator
Toggle
Color
Brown
Environmental Conditions
-40 to 115 deg C
Contact Configuration
SPST
Connection
Screw
Dimensions
3.281 in H x 1.32 in W x 1.073 in D
Type
Extra Heavy Duty
