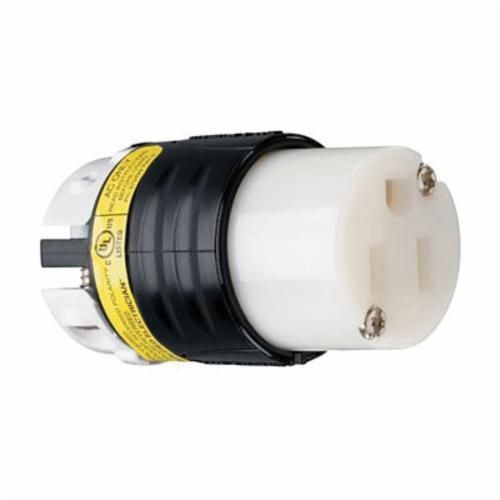

Pass & Seymour® PS5269-XGCM Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Pass & Seymour® PS5269-XGCM Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
SKU: P-SPS5269-XGCM
Manufacturer Part Number: PS5269-XGCM
UPC: 785007237214
Features
- Get superior durability in commercial and industrial use a great choice for tools, extension cords, machines, and lighting
- Color-coded terminal screws positioned on the same plane and backed out for fast, reliable installation
- Quick-thread assembly screws and cord-grip screws come backed out and ready to wire
- See-through, thermoplastic terminal chamber for clear views of terminals and wire connections
- Single Plane Wiring engineered for speed backed out and ready to wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise and provide excellent conductivity
- Unit arrives completely ready-to-wire, cuts installation time significantly
- Nylon housing for superior impact and chemical resistance
- Rugged two-piece cord grip provides more uniform cord retention
- Internal dust shield keeps terminals free of contaminants
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity
- Cord-grip screws recessed to protect installer against screwdriver head slippage
- More safety and productivity on the job with quick, intuitive wiring and a recessed cord grip to reduce screwdriver slippage
- Specification grade
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Black/White |
| Enclosure | IP20 |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cULus Listed, RoHS Complaint |
| Dimensions | 2.8 in |
| Cord Diameter | 0.23 - 0.7 in |
| Catalog ID | P-SPS5269-XGCM |
| Application | Extra hard use |
