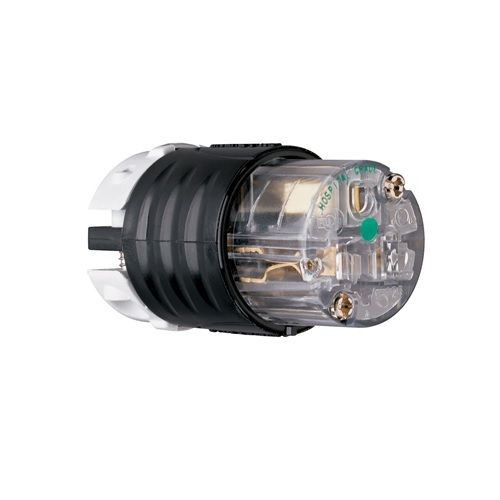

Pass & Seymour® PS5269-XHG Extra Hard Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/Clear
Pass & Seymour® PS5269-XHG Extra Hard Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/Clear
SKU: P-SPS5269-XHG
Manufacturer Part Number: PS5269XHG
UPC: 785007237290
Documents
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly
- Nylon housing provides impact and chemical resistance
- Rugged two-piece cord grip provides more uniform cord retention
- Internal dust shield keeps terminals free of contaminants
- Tri-drive assembly screws are standard on hospital grade plugs and connectors
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle
- Heavy duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity
- Cord grip screws recessed to protect installer against screwdriver head slippage
Specification
| Grade | Industrial/Hospital |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Type | Extra Hard Grounding |
| Voltage Rating | 125 VAC |
| Application | For industrial and hospital grade applications |
| Standard & Approvals | UL498 Listed, FSUL WC596, CSA C22.2 No. 42 Certified |
| Amperage Rating | 15 A |
| Dimensions | 1.516 in H x 1.516 in W x 2.64 in D |
| Color | Black/Clear |
| Cord Diameter | 0.23 to 0.72 in |
